Bently Nevada 330877-080-37-00 Detailed Product Overview

Product Introduction

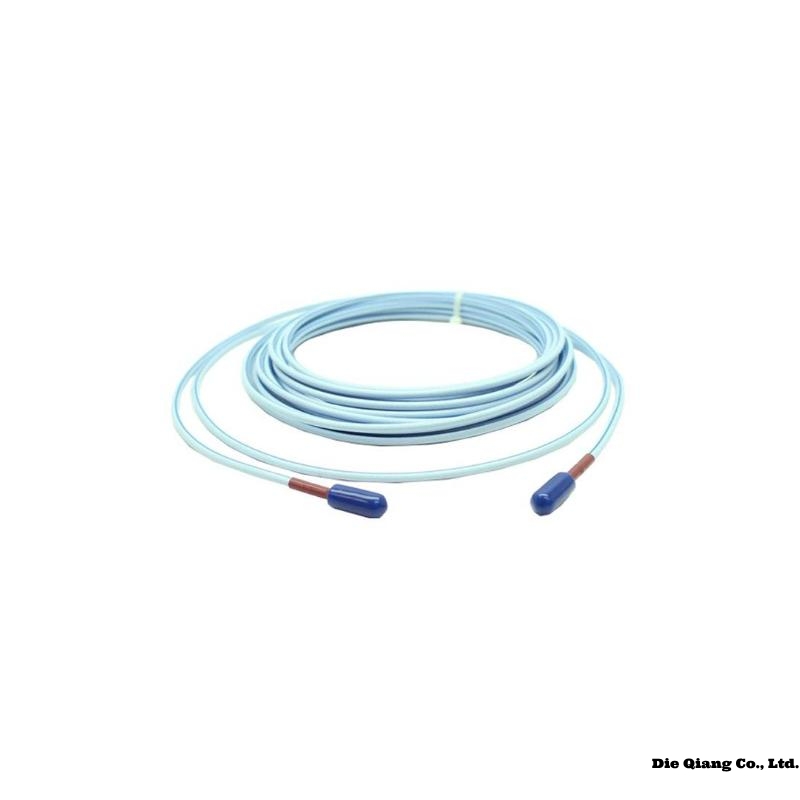

The Bently Nevada 330877-080-37-00 is a high-performance extension cable engineered for use with proximity transducer systems in industrial monitoring and protection applications. As part of the Bently Nevada 3300 XL series, this extension cable facilitates reliable signal transmission between the proximity probe and the monitor. Known for its robust design and exceptional electrical integrity, this model ensures long-term performance even in the most demanding environments such as power plants, petrochemical facilities, and manufacturing plants.

This extension cable is specifically built to maintain signal fidelity over long distances and is compliant with API 670 standards for machinery protection. Its precision shielding, rugged connectors, and compatibility with various Bently Nevada probes and drivers make it a critical component in vibration and displacement measurement systems.

Product Advantages

• High Signal Integrity: Ensures accurate signal transmission between probes and monitors with minimal electrical noise and signal loss.

• Durable Construction: Built to withstand industrial environments, including exposure to high temperatures, chemicals, and mechanical stress.

• Ease of Integration: Designed for seamless compatibility with Bently Nevada 3300 XL series proximity transducers and drivers.

• API 670 Compliant: Meets industry standards for machinery protection and condition monitoring.

• Flexible Length Options: Available in multiple lengths (080 = 8.0 meters), catering to various installation needs.

• Quick Installation: Includes robust connectors with secure latching systems, simplifying the installation process and minimizing downtime.

Technical Specifications

Applications

The Bently Nevada 330877-080-37-00 extension cable is widely used in industries where precise condition monitoring of rotating machinery is essential. Common applications include:

• Gas and Steam Turbines

• Compressors

• Pumps and Motors

• Centrifuges

• Industrial Fans

• Hydraulic Systems

• Petrochemical Plants

• Power Generation Facilities

These cables are essential for delivering accurate proximity sensor signals to monitoring equipment, ensuring timely alerts and data for predictive maintenance and machinery protection.

Compatible Models

The 330877-080-37-00 extension cable is typically used with the following Bently Nevada components:

• 3300 XL 8 mm Proximity Probes

• 3300 XL Proximitor Sensor (e.g., 3300 XL 3300-16-XX-XX)

• 330130, 330180 Probe Series

• 330106 Extension Cables

• Monitoring Systems: 3500 Series, 3300 Series

• Proximitor I/O Modules

It forms part of a complete proximity transducer system, working in unison with probes and Proximitor sensors to measure shaft displacement and vibration.

Installation Instructions

1. Preparation

   • Power off all connected systems before installation.

   • Inspect all cable ends and connectors for visible damage or debris.

2. Routing the Cable

   • Route the cable away from high-voltage sources to avoid electromagnetic interference.

   • Maintain the minimum bend radius (25.4 mm) to prevent cable damage.

3. Connecting to the Probe and Proximitor

   • Use the ClickLoc connectors to secure the cable to the proximity probe and Proximitor sensor.

   • Ensure the connectors are fully engaged and locked into place.

4. Securing the Cable

   • Use cable ties or clamps at regular intervals to prevent strain or movement.

   • Avoid sharp edges or abrasive surfaces along the cable path.

5. Testing

   • After installation, conduct a system test to confirm signal continuity and correct operation.

   • Verify measurements using diagnostic tools or software connected to the monitoring system.

Related Models (Same Series or Functionally Similar)

8 Popular Bently Nevada Models

Frequently Asked Questions (FAQ)

Q1: What is the main purpose of the 330877-080-37-00 extension cable?
A1: It is used to extend the connection between a proximity probe and a Proximitor sensor, maintaining signal quality and electrical shielding over distances.

Q2: Can the cable be used in hazardous environments?
A2: Yes. The cable meets certifications such as ATEX and IECEx, making it suitable for use in explosive and hazardous environments.

Q3: How is this cable different from standard coaxial cables?
A3: This cable is dual-shielded with industrial-grade materials, optimized for Bently Nevada systems to ensure signal integrity and mechanical durability.

Q4: Is it compatible with legacy Bently Nevada systems?
A4: It is primarily designed for the 3300 XL series but can be adapted to some older systems using compatible connectors or interfaces.

Q5: How should the cable be maintained after installation?
A5: Regular inspection for physical damage, connector integrity, and signal quality is recommended to ensure reliable operation.

Q6: Can I cut and re-terminate the cable for custom lengths?
A6: It is not recommended to modify the cable as it may affect shielding and impedance, leading to signal degradation or system faults.
