Bently Nevada 330703-000-040-10-02-00 Product Overview
The Bently Nevada 330703-000-040-10-02-00 is a high-performance vibration monitoring module designed for industrial machinery protection. It is part of the Bently Nevada 3300 series, which is widely recognized for its reliability and precision in condition monitoring. This module is specifically engineered to detect and analyze vibration levels in rotating equipment, ensuring early fault detection and preventing catastrophic failures.
Product Advantages
-
High Accuracy: Provides precise vibration measurements, enabling reliable machinery health assessment.
-
Robust Construction: Built to withstand harsh industrial environments, including extreme temperatures and vibrations.
-
Easy Integration: Compatible with existing Bently Nevada monitoring systems for seamless installation.
-
Advanced Diagnostics: Features advanced algorithms for early fault detection and reduced downtime.
-
Long Service Life: Designed for durability, reducing the need for frequent replacements.
-
Compliance: Meets international standards for industrial safety and performance.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model Number | 330703-000-040-10-02-00 |
| Cable length | 1 m |
| Weight | 0.255kg |
| Operating Voltage | 18-30 VDC |
| Output Signal | 4-20 mA, RS-485 |
| Frequency Range | 10 Hz to 10 kHz |
| Temperature Range | -40°C to +85°C |
| Protection Rating | IP67 |
| Mounting | DIN rail or panel mount |
Applications
The Bently Nevada 330703-000-040-10-02-00 is widely used in industries such as:
-
Oil and gas (compressors, turbines, pumps)
-
Power generation (steam and gas turbines)
-
Chemical processing (rotating machinery)
-
Water treatment (pumps and motors)
-
Mining (heavy-duty equipment)
Compatible Models
This module is designed to work seamlessly with the following Bently Nevada products:
-
3300/20 Proximitor® Sensor
-
3300/25 Accelerometer
-
3300/16 Proximity Transducer
-
3300/40 Monitor
-
3300/50 Communication Gateway
Installation Instructions
-
Mounting: Secure the module on a DIN rail or panel using the provided brackets.
-
Wiring: Connect the power supply (18-30 VDC) and output signals (4-20 mA or RS-485) as per the wiring diagram.
-
Sensor Connection: Attach the compatible vibration sensor (e.g., 3300/20 Proximitor) to the input channel.
-
Calibration: Use the Bently Nevada configuration software to calibrate the module for accurate readings.
-
Testing: Verify the system functionality by simulating vibration signals.
-
Final Check: Ensure all connections are secure and the module is properly grounded.
Recommended Similar or Related Models
| Model Number | Description | Dimensions | Weight | Voltage |
|---|---|---|---|---|
| 330703-000-040-10-01-00 | Vibration Monitor (Lower Frequency Range) | 150 mm x 90 mm x 40 mm | 0.5 kg | 18-30 VDC |
| 330703-000-040-10-03-00 | Vibration Monitor (Higher Frequency Range) | 150 mm x 90 mm x 40 mm | 0.5 kg | 18-30 VDC |
| 330703-000-050-10-02-00 | Temperature Monitoring Module | 140 mm x 80 mm x 35 mm | 0.4 kg | 24 VDC |
| 330703-000-060-10-02-00 | Pressure Monitoring Module | 160 mm x 100 mm x 45 mm | 0.6 kg | 18-30 VDC |
| 330703-000-070-10-02-00 | Dual-Channel Vibration Monitor | 170 mm x 110 mm x 50 mm | 0.7 kg | 24 VDC |
| 330703-000-080-10-02-00 | High-Temperature Vibration Monitor | 150 mm x 90 mm x 40 mm | 0.5 kg | 18-30 VDC |
Popular Bently Nevada Models
| Model Number | Description | Dimensions | Weight | Voltage |
|---|---|---|---|---|
| 3500/42M | Proximity Transducer Monitor | 200 mm x 120 mm x 60 mm | 1.2 kg | 24 VDC |
| 3500/22M | Accelerometer Monitor | 180 mm x 100 mm x 50 mm | 1.0 kg | 24 VDC |
| 3500/92M | Dual-Channel Monitor | 220 mm x 140 mm x 70 mm | 1.5 kg | 24 VDC |
| 3500/15 | Temperature Monitor | 160 mm x 90 mm x 45 mm | 0.8 kg | 24 VDC |
| 3500/32M | Thrust Position Monitor | 190 mm x 110 mm x 55 mm | 1.1 kg | 24 VDC |
| 3500/25 | Speed Monitor | 170 mm x 100 mm x 50 mm | 0.9 kg | 24 VDC |
| 3500/45M | Differential Expansion Monitor | 210 mm x 130 mm x 65 mm | 1.3 kg | 24 VDC |
| 3500/53M | Valve Position Monitor | 200 mm x 120 mm x 60 mm | 1.2 kg | 24 VDC |
Frequently Asked Questions (FAQ)
Q1: What is the operating temperature range of the 330703-000-040-10-02-00?
A1: The module operates reliably within a temperature range of -40°C to +85°C.
Q2: Can this module be used in hazardous environments?
A2: Yes, it is designed with robust construction and meets IP67 standards, making it suitable for harsh industrial environments.
Q3: What type of output signals does this module support?
A3: It supports 4-20 mA analog output and RS-485 digital communication.
Q4: Is calibration required after installation?
A4: Yes, calibration using Bently Nevada configuration software is recommended for optimal performance.
Q5: What is the weight of the module?
A5: The module weighs approximately 0.5 kg.
Q6: Can this module be integrated with existing Bently Nevada systems?
A6: Yes, it is fully compatible with Bently Nevada 3300 series monitoring systems.

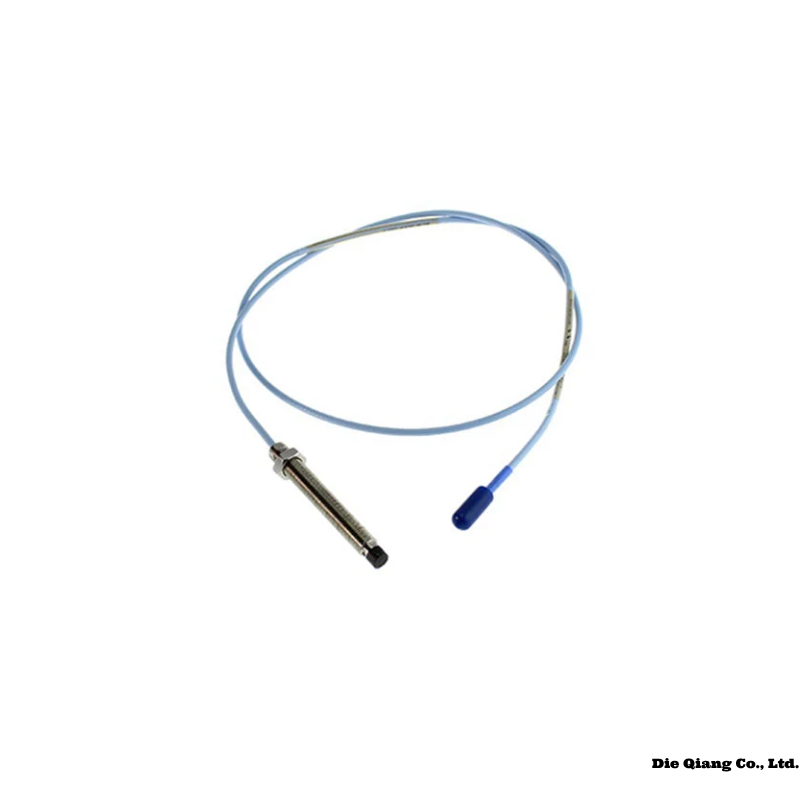

Bently Nevada 330703-000-040-10-02-00 3300 XL 8 mm Proximity Probe
