Product Introduction: Triconex 3623

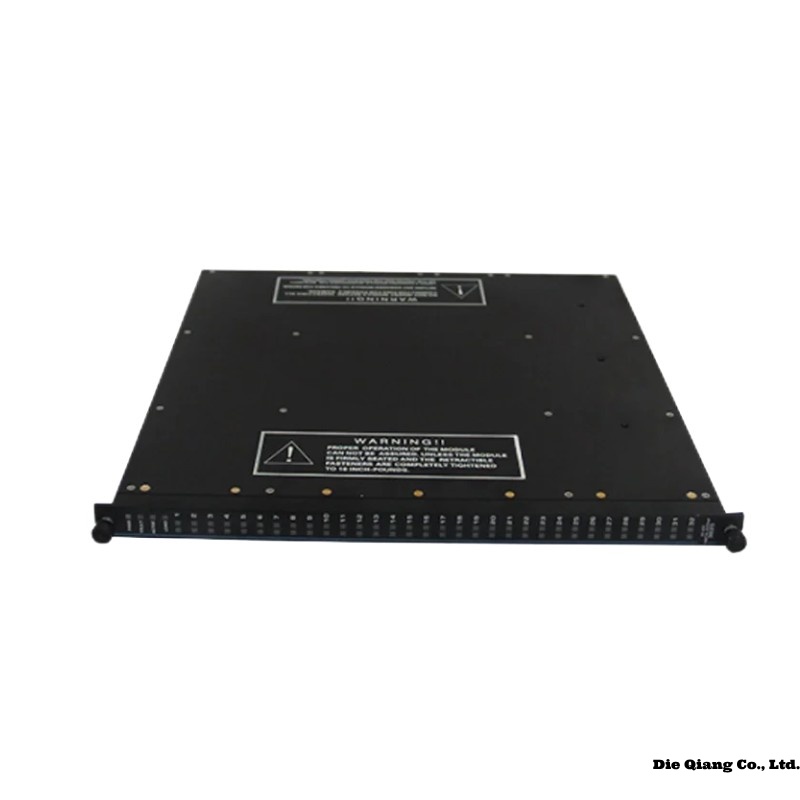

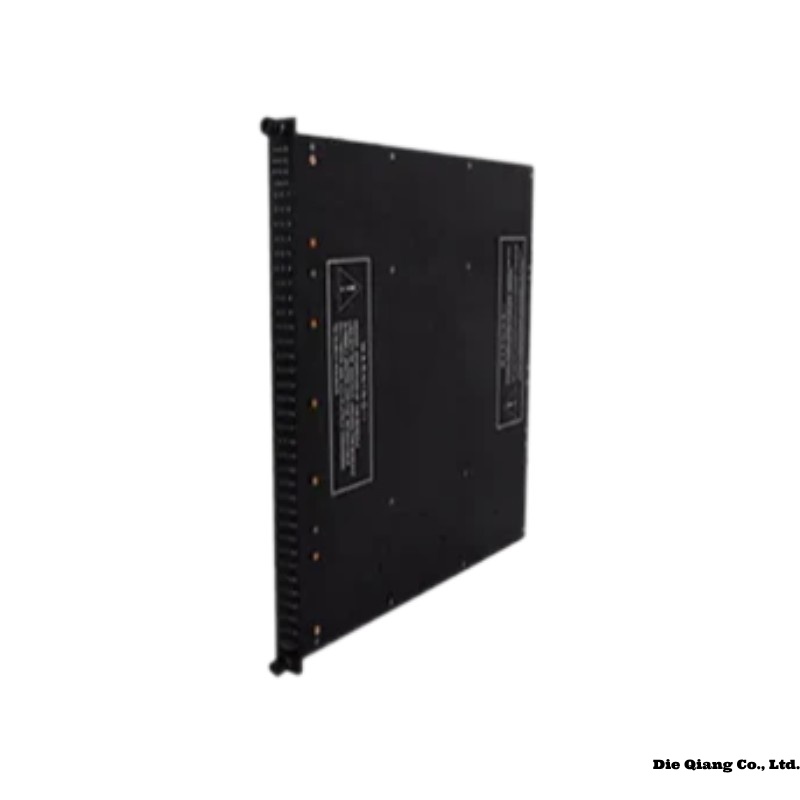

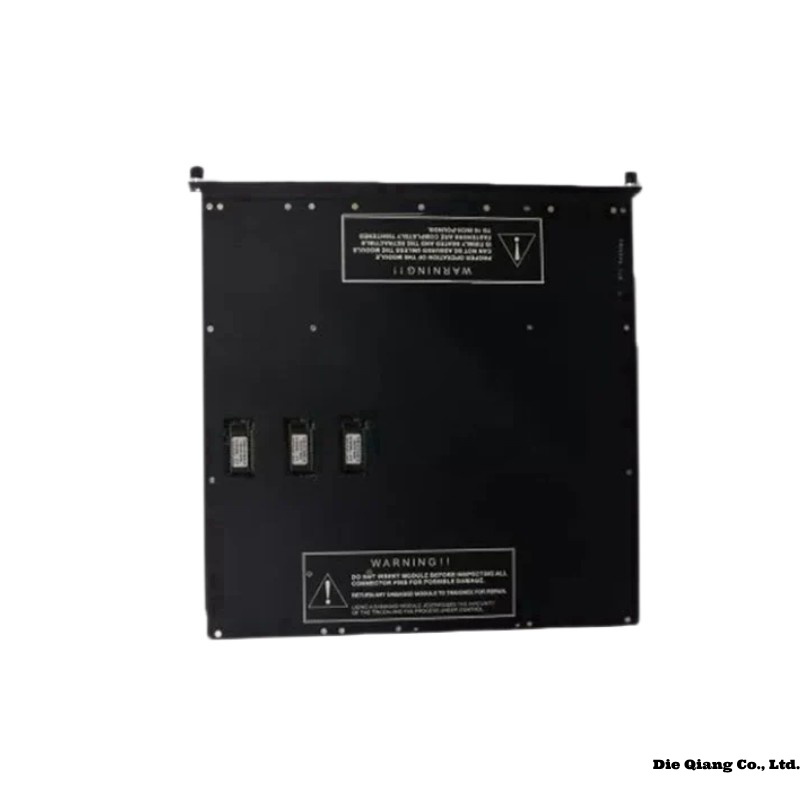

The Triconex 3623 is a Digital Output module designed for use in the Triconex Tricon™ fault-tolerant safety and control systems, developed by Schneider Electric. This high-performance I/O module plays a critical role in safety instrumented system (SIS) applications, delivering secure digital output signals to field devices. Known for its robustness and reliability, the 3623 module is widely employed in process industries such as oil & gas, petrochemical, power generation, and other high-demand industrial sectors where safety is paramount.

This model supports hot-replacement and online diagnostics, minimizing downtime and maximizing availability in critical control environments. Built to operate under harsh conditions, it complies with rigorous industrial standards, including TUV and SIL 3 certifications.

Product Advantages

• Fault-Tolerant Architecture: Designed to work within the Tricon™ triple modular redundancy (TMR) system, offering high integrity and zero downtime during module replacement.

• High Channel Density: Supports 32 digital output channels, improving space efficiency within safety system configurations.

• Hot Swappable: Allows field replacement without system shutdown, reducing operational interruptions.

• Safety Certified: Certified to SIL 3 (IEC 61508) for use in safety-instrumented functions.

• Built-in Diagnostics: Real-time diagnostics for immediate fault detection and repair.

• Durability: Built to withstand severe environmental conditions including vibration, temperature variation, and electromagnetic interference.

Technical Specifications

Applications

The Triconex 3623 is utilized in various mission-critical and safety-related applications, including:

• Emergency Shutdown Systems (ESD)

• Fire and Gas Detection Systems

• Burner Management Systems

• High-Integrity Pressure Protection Systems (HIPPS)

• Boiler and Turbine Control Systems

• Pipeline Monitoring and Control

• Nuclear and Fossil Power Plants

Its compatibility with diverse field devices makes it a preferred choice in industries requiring high availability and compliance with safety regulations.

Compatible and Associated Models

The following Triconex modules are often used in conjunction with the 3623:

• Triconex 3008 – Main processor module

• Triconex 3504E – Analog input module

• Triconex 3511 – Digital input module

• Triconex 3721 – Analog output module

• Triconex 3700A – Communication module

• Triconex 4351B – Enhanced Main Processor

These modules together create a complete safety instrumentation environment, where inputs, logic processing, and outputs are handled seamlessly within the TMR framework.

Installation Instructions

1. Safety First: Ensure all power to the Tricon system is turned off before attempting installation or replacement.

2. Static Precaution: Use ESD protection measures (wrist strap and grounded mat) during handling and installation.

3. Module Slot: Insert the 3623 into the designated I/O slot in the Tricon chassis. Verify that the module aligns properly with the backplane connector.

4. Secure Module: Gently but firmly press the module into place until fully seated. Secure with the top and bottom retaining screws.

5. Wiring Connection: Connect digital output wiring to the terminal block, observing polarity and load specifications.

6. Power Up: Restore power to the system. Monitor the Triconex controller display or software interface for proper module recognition.

7. Verification: Run built-in diagnostics or manual verification through the Triconex software suite (e.g., TriStation) to confirm proper operation.

6 Related Models (Same Series or Functional Category)

8 Popular Models from Triconex

FAQ – Frequently Asked Questions

Q1: What is the primary use of the Triconex 3623 module?
A1: The 3623 module is primarily used to provide digital output signals in safety-critical applications, controlling actuators, relays, or other discrete devices in industrial systems.

Q2: Is the Triconex 3623 module hot-swappable?
A2: Yes, it supports hot-swapping, allowing replacement without shutting down the system, which enhances availability and minimizes downtime.

Q3: Can the 3623 module be used in SIL 3 certified systems?
A3: Yes, the module is certified to SIL 3 (Safety Integrity Level 3) under IEC 61508, making it suitable for high-integrity safety applications.

Q4: What type of diagnostics does the 3623 provide?
A4: It offers built-in diagnostics for detecting open loads, short circuits, and internal failures, ensuring prompt fault detection and maintenance.

Q5: What software is used to configure the Triconex 3623?
A5: The module is configured and monitored using TriStation 1131, Schneider Electric’s engineering software suite for Triconex systems.

Q6: What kind of environmental conditions can the 3623 withstand?
A6: It is designed to function in harsh industrial environments, tolerating temperatures from -20°C to +70°C and high humidity levels up to 95% non-condensing.
