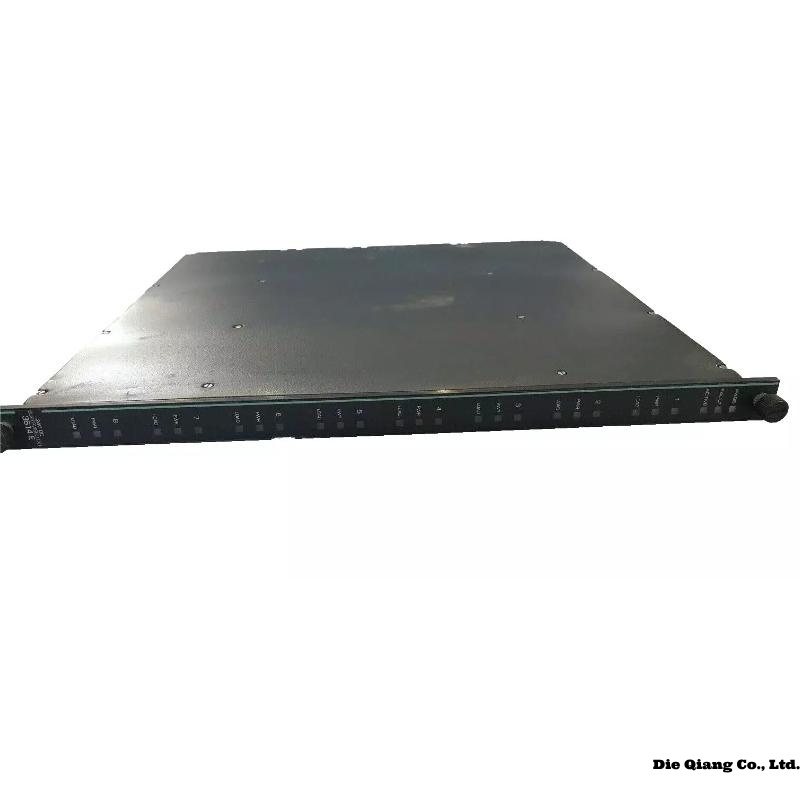

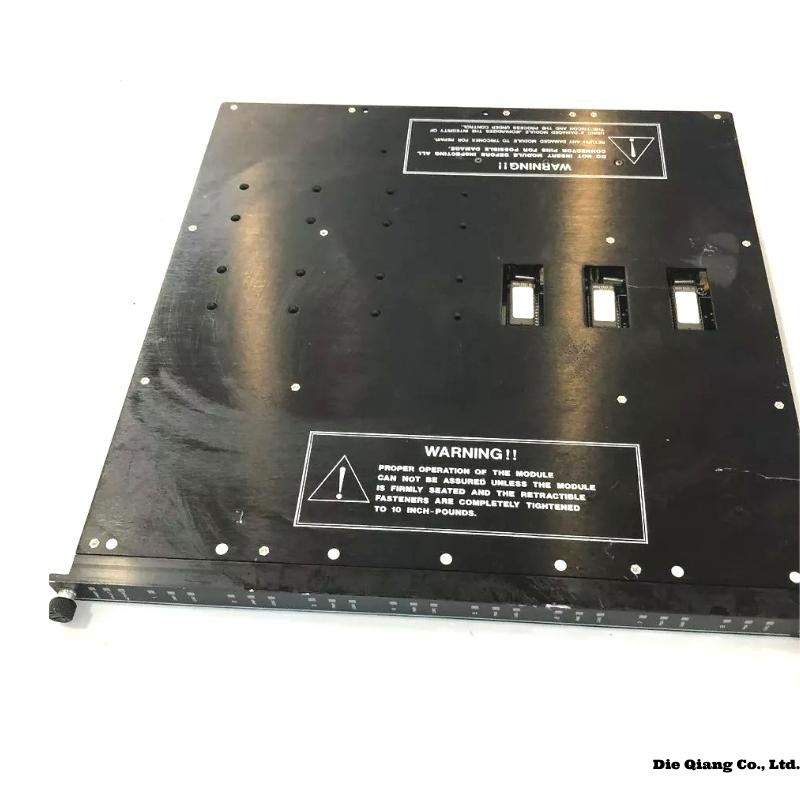

Triconex 3614E Product Overview

The Triconex 3614E is a high-performance safety system module designed for critical control applications. It is part of the Triconex Safety Instrumented System (SIS) family, which is widely used in industries requiring fail-safe operation, such as oil & gas, chemical processing, and power generation. The 3614E module is known for its reliability, fault tolerance, and robust design, making it ideal for safety-critical environments.

Product Advantages

1. High Reliability – Designed with triple modular redundancy (TMR) technology to ensure continuous operation even in the event of a failure.

2. Fault Tolerance – Automatically detects and compensates for failures without interrupting system performance.

3. Wide Operating Range – Suitable for harsh industrial environments with extended temperature and humidity ranges.

4. Easy Integration – Compatible with various Triconex systems and third-party devices for seamless system expansion.

5. Certified Safety Standards – Complies with IEC 61508 and SIL 3 standards, ensuring high safety integrity.

6. Long Service Life – Built with industrial-grade components for extended durability.

Technical Specifications

Applications

The Triconex 3614E is widely used in industries where safety and reliability are critical:

• Oil & Gas – Emergency shutdown systems (ESD), fire & gas detection.

• Chemical Processing – Process shutdown and safety interlocks.

• Power Generation – Turbine control and reactor protection.

• Pharmaceuticals – Batch process safety management.

• Mining – Hazardous environment monitoring.

Compatible & Recommended Models

The Triconex 3614E can be used alongside the following modules for a complete safety system:

1. Triconex 3624T – Digital Input Module

2. Triconex 3704A – Analog Input Module

3. Triconex 3805E – Communication Module

4. Triconex 4351B – Power Supply Module

5. Triconex 3008 – Main Processor Module

6. Triconex 3481 – Relay Output Module

Recommended Related Models (Same Series)

Top 8 Popular Triconex Models (Other Series)

Installation Instructions

1. Mounting – Install the module in a 19-inch rack or DIN rail using the provided brackets.

2. Wiring – Connect power and signal cables according to the terminal labeling (follow the manual for correct polarity).

3. Grounding – Ensure proper grounding to avoid electrical noise interference.

4. Power-Up – Verify voltage before turning on the system (24V DC ±10%).

5. Configuration – Use Tristation 1131 software to configure the module parameters.

6. Testing – Perform a diagnostic test to confirm proper operation before full deployment.

FAQ (Frequently Asked Questions)

Q1: What is the difference between Triconex 3614E and 3624T?
A1: The 3614E is a general-purpose safety module with TMR, while the 3624T is a digital input module designed for sensor interfacing.

Q2: Can the 3614E operate in extreme temperatures?
A2: Yes, it supports -20°C to +70°C, making it suitable for harsh environments.

Q3: Is the 3614E compatible with non-Triconex systems?
A3: It can interface via Modbus or Ethernet, but optimal performance is achieved within the Triconex ecosystem.

Q4: What certifications does the 3614E have?
A4: It is SIL 3 certified per IEC 61508 and optionally ATEX for hazardous areas.

Q5: How often should the 3614E be maintained?
A5: Annual diagnostics are recommended, but it has self-monitoring for real-time fault detection.

Q6: Can I replace the 3614E while the system is running?
A6: Yes, it supports hot-swapping if the system is configured for redundancy.
