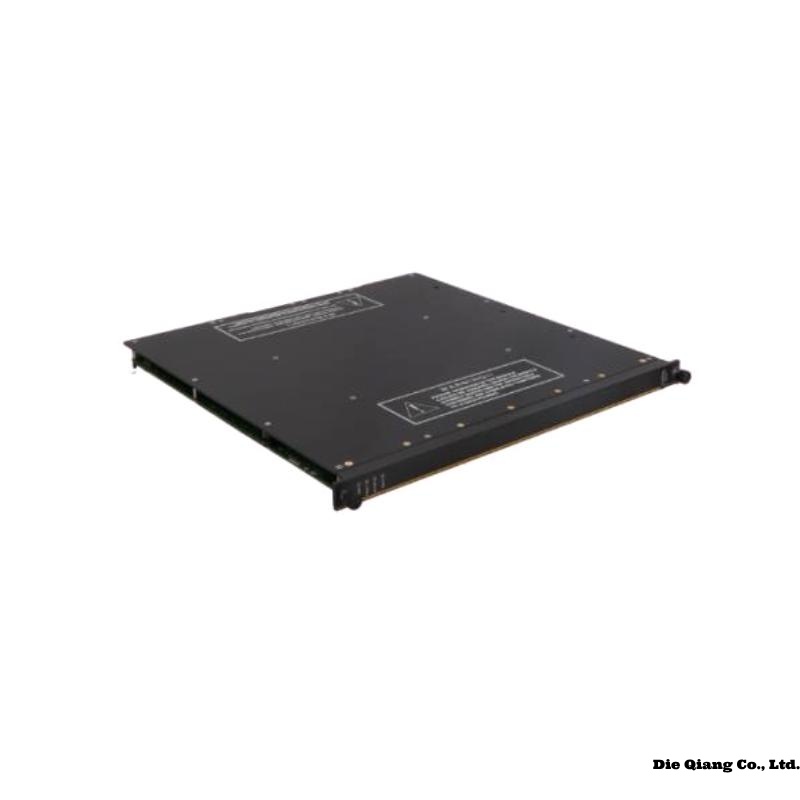

Triconex 3603E Product Introduction

The Triconex 3603E is a high-performance safety module designed for critical control applications in industrial environments. It is part of the Triconex Tricon series, known for its robust fault-tolerant architecture and high reliability. The 3603E module is widely used in safety instrumented systems (SIS), emergency shutdown systems (ESD), and other mission-critical applications where failure is not an option.

The module features triple-modular redundancy (TMR) technology, ensuring continuous operation even in the event of a hardware failure. Its rugged design makes it suitable for harsh industrial environments, including oil and gas, chemical processing, and power generation.

Product Advantages

1. Triple-Modular Redundancy (TMR): Ensures high availability and fault tolerance by processing data across three independent channels.

2. High Reliability: Designed for mission-critical applications with a proven track record in industrial safety systems.

3. Robust Construction: Built to withstand harsh environmental conditions, including extreme temperatures and vibrations.

4. Easy Integration: Compatible with existing Triconex systems and supports various communication protocols.

5. Diagnostic Capabilities: Advanced self-diagnostics and real-time monitoring for proactive maintenance.

6. Certified Safety Standards: Meets international safety standards such as IEC 61508 and SIL 3.

Technical Specifications

Product Applications

The Triconex 3603E is used in industries where safety and reliability are paramount:

• Oil & Gas: Emergency shutdown systems (ESD), fire and gas detection.

• Chemical Processing: Safety interlocks, critical process control.

• Power Generation: Turbine control, reactor protection systems.

• Pharmaceutical: Batch process safety.

• Mining: Hazardous environment monitoring.

Compatible/Related Models for Integration

The Triconex 3603E can be integrated with the following modules:

1. Triconex 3503E – Analog Input Module

2. Triconex 3700A – Communication Module

3. Triconex 3805E – Digital Output Module

4. Triconex 4351B – Power Supply Module

5. Triconex 4000100-510 – Main Processor Module

6. Triconex 3625T – Temperature Input Module

Recommended Triconex Series Models

Top 8 Popular Triconex Models

FAQ (Q&A Format)

Q1: What is the operating voltage range for the Triconex 3603E?
A1: The Triconex 3603E operates at 24V DC with a tolerance of ±10%.

Q2: Is the Triconex 3603E suitable for hazardous environments?
A2: Yes, it can be optionally certified for ATEX and IECEx hazardous area compliance.

Q3: What communication protocols does the 3603E support?
A3: It supports Modbus, Ethernet/IP, and OPC UA for seamless integration.

Q4: Can the Triconex 3603E be used in high-temperature environments?
A4: Yes, it operates reliably in temperatures ranging from -40°C to +70°C.

Q5: What is the expected lifespan of the Triconex 3603E?
A5: With proper maintenance, it can operate for 15+ years in industrial settings.

Q6: Does the 3603E support hot-swapping for maintenance?
A6: Yes, it is designed for hot-swapping to minimize downtime during replacements.
