Product Introduction – GE IC693MDL340

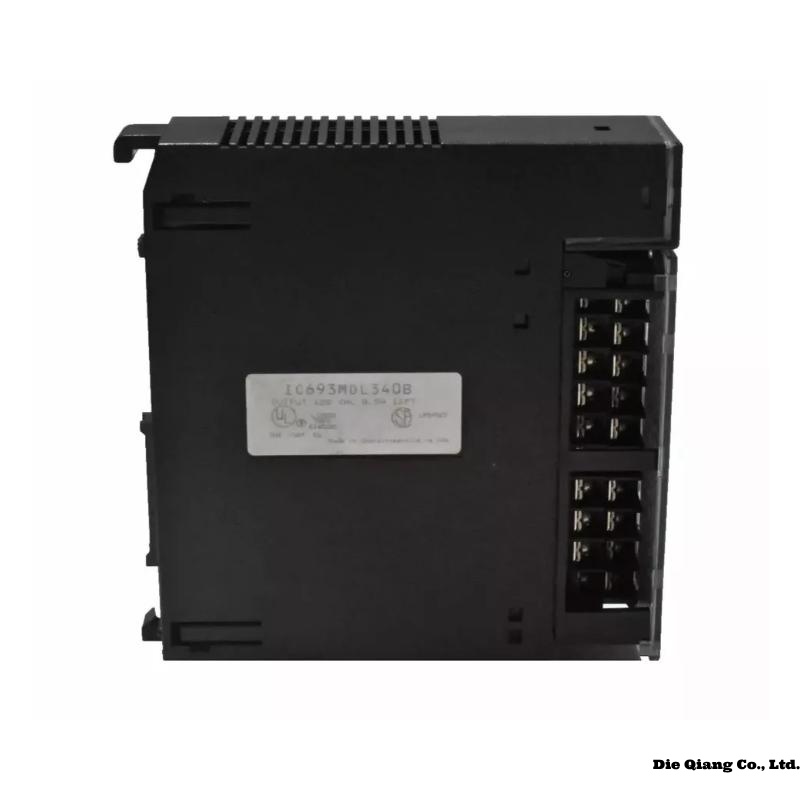

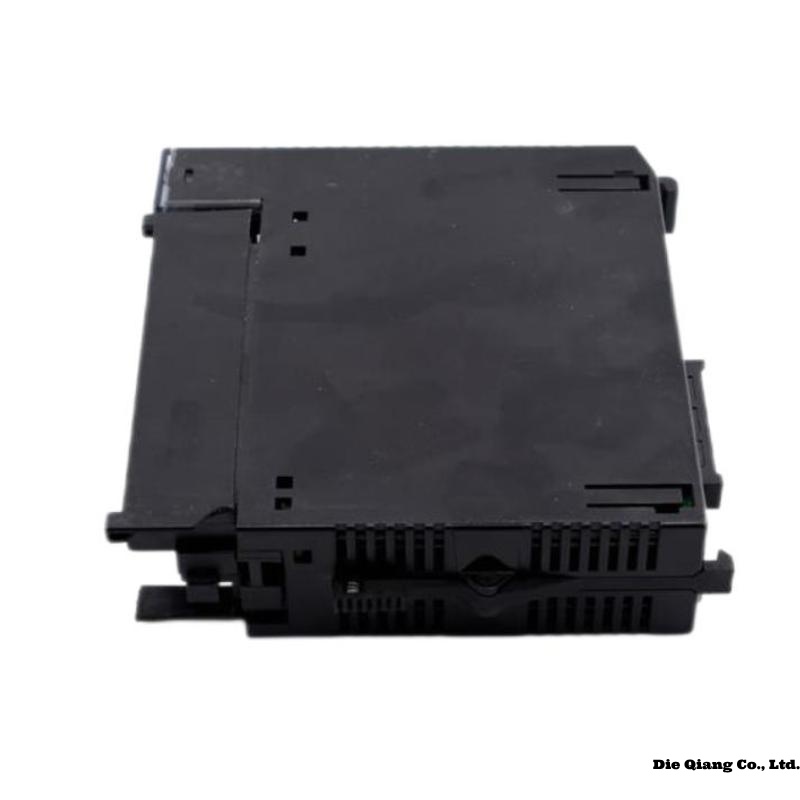

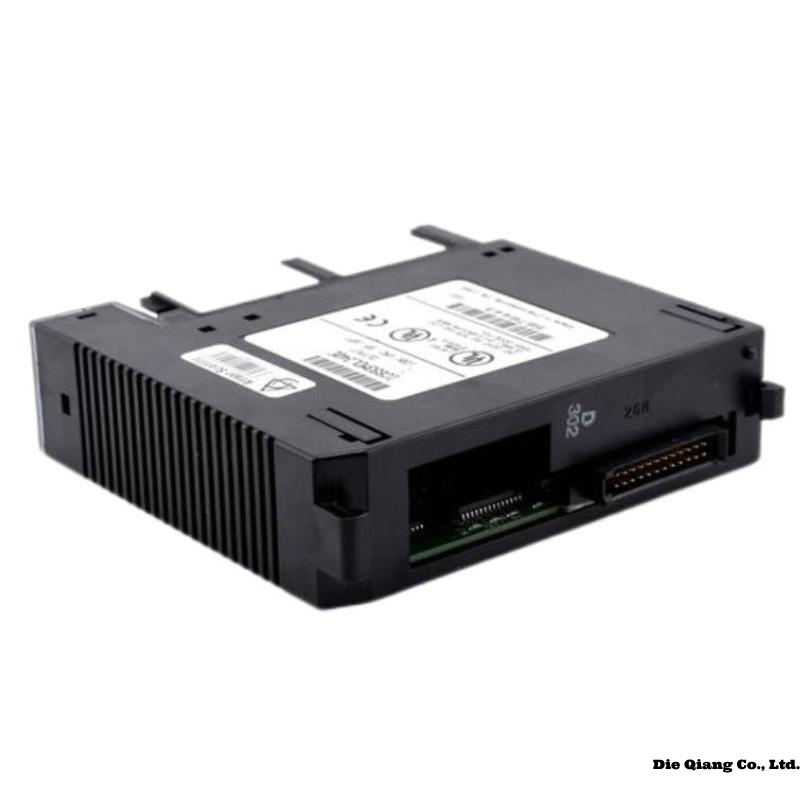

The GE IC693MDL340 is a 120VAC Positive Logic Output Module developed by GE Fanuc as part of the Series 90-30 programmable logic controller (PLC) family. Designed for industrial automation systems, the IC693MDL340 provides reliable output switching for AC loads such as lights, relays, solenoids, and other actuators.

This module contains 16 output points, divided into two isolated groups of 8. Each group can be powered and controlled independently, offering flexibility in managing multiple devices. The module utilizes triac outputs for switching and ensures consistent performance across varied industrial conditions. It is engineered for durability and ease of integration into control panels and industrial automation systems.

The IC693MDL340 is widely used in factory automation, process control, and discrete manufacturing environments, offering stable performance and compatibility with a range of GE Series 90-30 CPUs and I/O bases.

Product Advantages

• High Reliability: Built with industrial-grade components to ensure longevity and low failure rates in mission-critical environments.

• Isolated Groups: Two independently isolated groups allow for safer and more flexible circuit design.

• Efficient Switching: Designed for 120VAC loads, the triac outputs ensure smooth and noise-free switching.

• Seamless Integration: Fully compatible with Series 90-30 PLCs, enabling easy configuration and integration with existing systems.

• LED Indicators: Visual status indicators for each output channel enhance diagnostics and troubleshooting.

• Durable Construction: Engineered for tough industrial settings, with high resistance to environmental stressors such as vibration and temperature fluctuations.

Technical Specifications

Applications

• Factory Automation: Ideal for controlling AC-powered actuators, signal lights, and relays in automated manufacturing environments.

• Building Automation: Used in HVAC control panels, lighting systems, and door control units.

• Water Treatment Plants: Effective in controlling pumps, valves, and alarms in fluid management systems.

• Material Handling Systems: For operating conveyor belts, diverters, and industrial sorting machines.

• Process Control Systems: Used in petrochemical, pharmaceutical, and food & beverage industries for managing batch and continuous processes.

• Packaging Machinery: Efficiently controls the output operations in high-speed packaging lines.

Compatible Models

The IC693MDL340 works seamlessly with the following Series 90-30 components:

• IC693CHS391 – 10-slot I/O base

• IC693CPU374 – High-speed Ethernet CPU module

• IC693PWR321 – Standard power supply module

• IC693ACC302 – PLC expansion cable

• IC693MDL645 – 24VDC input module

• IC693ALG223 – Analog current output module

Installation Instructions

1. Power Off: Ensure all power to the PLC system is turned off before installation to prevent electrical shock or damage.

2. Mount the Module: Align the module with the appropriate slot in the I/O base (IC693CHS series). Firmly press until it clicks into place.

3. Secure the Module: Tighten the mounting screws to secure the module.

4. Wiring: Connect the output wiring to the terminal block. Make sure to separate loads per group and stay within current limitations.

5. Connect to Ground: Properly ground the module to avoid electrical noise and ensure safety.

6. Power On and Test: Restore power and monitor the LED indicators for correct output operation. Use programming software to assign logic functions.

7. Diagnostic Check: Utilize the GE programming environment to confirm the module is correctly identified and configured.

6 Related Models in the Same Series

8 Popular GE Models with Specifications

FAQ (Frequently Asked Questions)

Q1: What type of devices can the IC693MDL340 control?
A1: The IC693MDL340 can control AC-powered devices such as contactors, solenoids, indicator lamps, and relays that operate at 120 VAC.

Q2: Can I use the IC693MDL340 with a DC voltage source?
A2: No, this module is designed specifically for 120 VAC outputs and should not be used with DC loads.

Q3: What happens if the load exceeds the rated current per point?
A3: Exceeding the rated 0.5 A per point may damage the triac components. It is critical to ensure that the connected load is within specified limits.

Q4: Are the output groups truly isolated?
A4: Yes, the two 8-point groups are electrically isolated from each other, which enables more flexible and safe configurations.

Q5: Does the module support diagnostics or fault detection?
A5: The module includes LED indicators per output point for basic diagnostics, but advanced fault detection must be handled via the CPU logic.

Q6: How do I update or replace the module safely?
A6: Always power down the PLC system completely, disconnect any wiring, and follow GE’s recommended procedures to replace the module safely.
