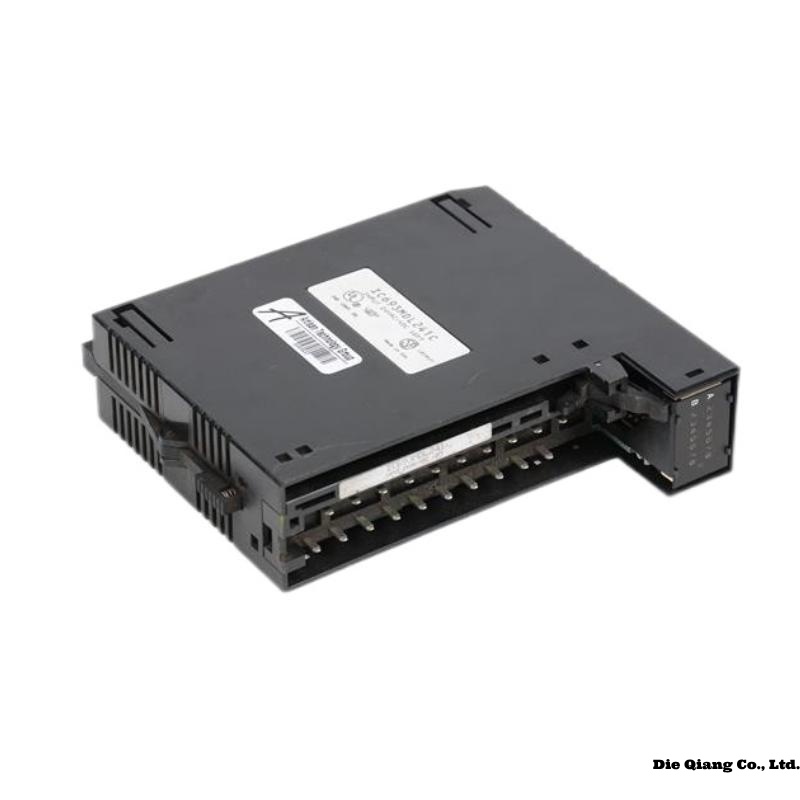

GE IC693MDL241 Product Overview

The GE IC693MDL241 is a 120/240 Volt AC output module from the GE Series 90-30 programmable logic controller (PLC) family. It is designed to interface field devices such as solenoids, relays, and motor starters with control systems. The module provides 8 output points arranged in a single group and offers a rugged and reliable interface for controlling AC-powered devices in industrial environments. Each output channel is capable of switching loads up to 2 Amps per point.

The IC693MDL241 is widely recognized for its ease of installation, durable performance in harsh environments, and compatibility with other GE 90-30 series modules.

Product Advantages

• High Reliability: Engineered with robust circuitry to ensure long-term performance in industrial applications.

• Wide Voltage Range: Supports both 120V and 240V AC, offering flexibility across regions and equipment.

• Compact Design: Optimized for space-constrained panels without compromising functionality.

• Status Indication: Equipped with LED indicators for each output point, allowing quick diagnostics and troubleshooting.

• Compatibility: Seamlessly integrates with GE Series 90-30 PLCs and other related modules, simplifying system configuration.

• Safety Features: Includes fuse protection and opto-isolated outputs to safeguard against electrical noise and overload.

Technical Specifications

Applications

The GE IC693MDL241 is widely used across multiple industries for controlling and monitoring AC-powered devices. Common applications include:

• Manufacturing Automation: Actuating relays and solenoids in assembly lines.

• Building Management Systems: Managing lighting, HVAC, and other utilities.

• Material Handling: Operating conveyors, lifts, and sorting mechanisms.

• Water Treatment Plants: Controlling pumps, valves, and other actuators.

• Energy Sector: Supervisory control of switchgear and substations.

Compatible Models

The IC693MDL241 is typically used alongside other GE Series 90-30 modules, such as:

• IC693CPU364 – CPU module with Ethernet and serial communication.

• IC693PWR321 – Power supply module for Series 90-30.

• IC693MDL645 – 24VDC input module for sensing.

• IC693MDL340 – 120V AC input module.

• IC693ALG223 – Analog current output module.

• IC693CHS391 – 10-slot baseplate.

These modules collectively support a full automation system with inputs, outputs, processing, and communication capabilities.

Installation Instructions

1. Power Down: Ensure the PLC system is completely powered off before installation.

2. Mounting: Slide the IC693MDL241 into the appropriate slot on the 90-30 baseplate (e.g., IC693CHS391).

3. Wiring: Connect the AC load wires to the terminal block corresponding to each output point. Ensure proper load ratings.

4. Grounding: Follow proper grounding practices to prevent electrical noise and ensure safety.

5. Fuse Check: Confirm that built-in fuses or external fuses (if required) match load requirements.

6. Power Up and Test: Once connections are verified, power up the system and test each output using the PLC programming software.

7. Diagnostics: Use onboard LED indicators to verify output status and functionality.

6 Related Models in the Same Series

8 Popular GE Models

Frequently Asked Questions (FAQ)

Q1: What type of devices can I connect to the IC693MDL241?
A1: You can connect AC-powered devices such as solenoids, contactors, lamps, and relays that operate within 120–240 VAC and draw no more than 2 Amps per output.

Q2: Can this module be used with other brands of PLCs?
A2: The IC693MDL241 is specifically designed for the GE Series 90-30 system and may not be directly compatible with non-GE PLCs without a custom interface.

Q3: Is the IC693MDL241 hot-swappable?
A3: No, this module is not hot-swappable. The system must be powered down before installing or removing the module.

Q4: What protections are in place for overload or short circuit?
A4: The module includes built-in fusing and isolation protection. External fuses are recommended for additional safety based on application load.

Q5: How do I troubleshoot if one output is not working?
A5: Check the corresponding LED indicator, verify wiring and load, and ensure proper programming. If needed, test the output channel with a different load or use diagnostic tools in the GE programming software.

Q6: What’s the difference between this and IC693MDL240?
A6: Both are similar, but IC693MDL240 supports only 120 VAC, while IC693MDL241 supports both 120 and 240 VAC, offering greater voltage flexibility.
