Product Introduction

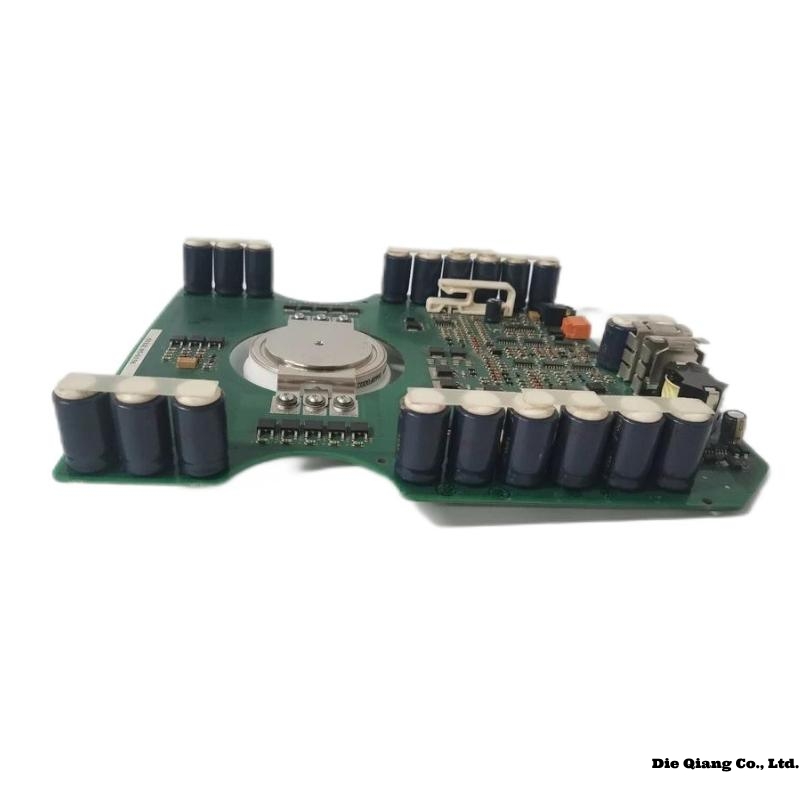

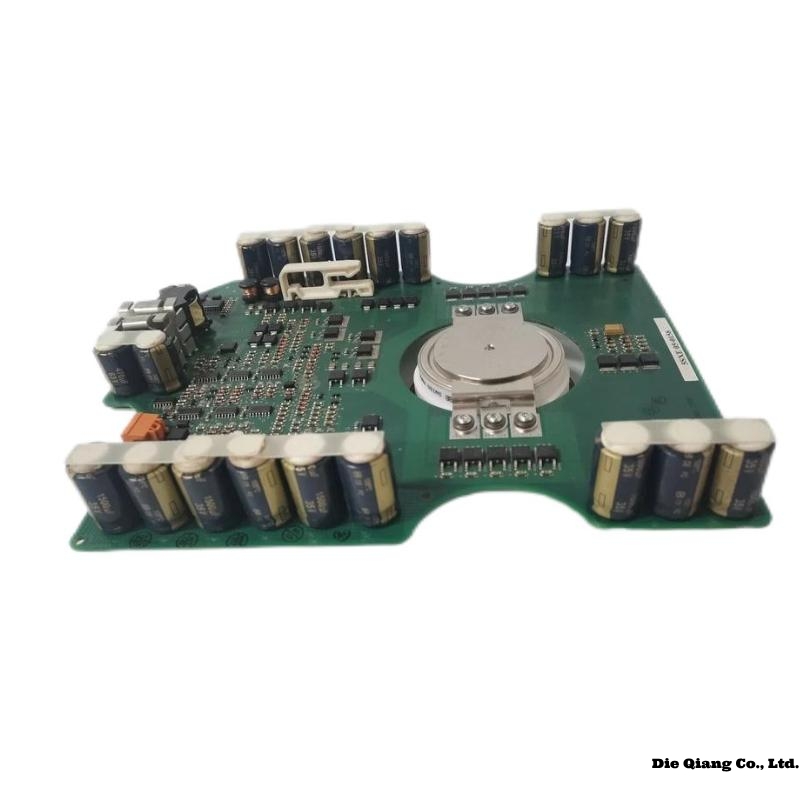

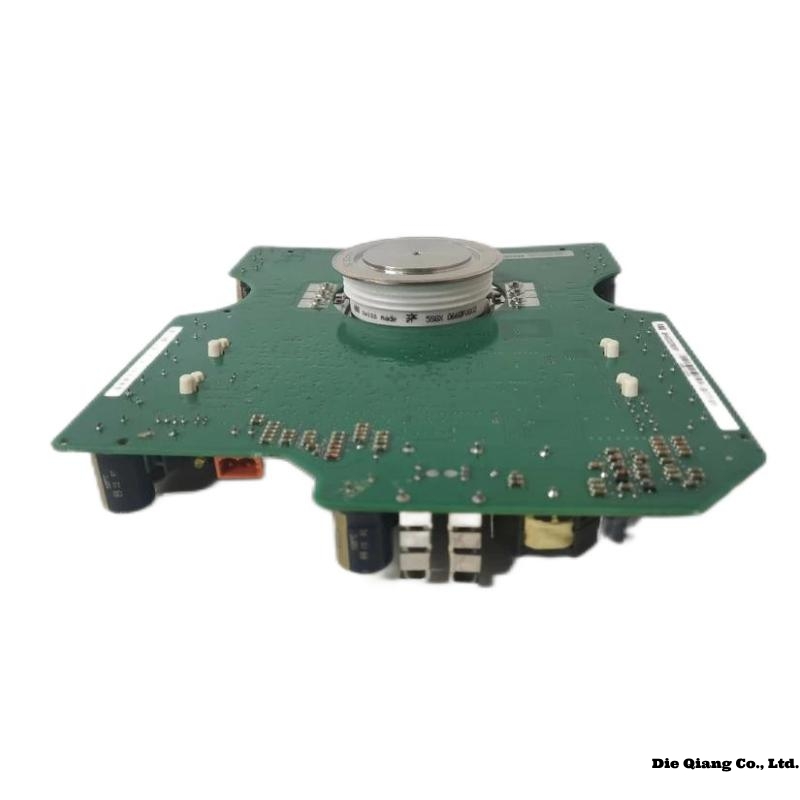

The ABB 5SHX0660F0002 3BHE022333R0101 is a high-performance semiconductor module designed for demanding industrial applications. It belongs to ABB’s advanced product line of phase control thyristors, delivering superior electrical performance, excellent thermal management, and high mechanical robustness. Developed for critical and heavy-duty operations, it ensures reliable power control and efficient energy management in various sectors such as automation, power generation, transportation, and large-scale industrial machinery.

The 5SHX0660F0002 model is meticulously engineered to offer outstanding durability, even in the harshest operating environments. It represents ABB’s commitment to innovation, quality, and operational excellence.

Product Advantages

• High Reliability: Manufactured with ABB’s advanced semiconductor technology to guarantee stable and reliable long-term operation.

• Exceptional Thermal Management: Superior thermal resistance enables optimal performance even under high load and elevated temperature conditions.

• Robust Mechanical Design: Engineered to endure mechanical stress, vibration, and thermal cycling.

• Low On-State Voltage Drop: Reduces energy loss and improves overall efficiency.

• Optimized Switching Performance: Fast and accurate switching capabilities ensure enhanced control over industrial processes.

• Flexible Integration: Compatible with a wide range of ABB and third-party industrial control systems.

Technical Specifications

Product Applications

• Power Generation Systems: For use in high-voltage direct current (HVDC) transmission and energy conversion systems.

• Industrial Drives: Controls large motors and variable speed drive applications.

• Steel and Aluminum Processing Plants: Used in induction furnaces, smelting operations, and electrolysis processes.

• Transportation: Applied in railway traction and ship propulsion systems.

• Power Supplies: Integral in high-capacity rectifiers and inverters.

• Automation Systems: Key component in process control and robotic manufacturing.

Compatible Models

The ABB 5SHX0660F0002 3BHE022333R0101 is often used alongside or can replace the following compatible models:

• ABB 5SHX1060L0001

• ABB 5SHY3545L0020

• ABB 5SHY4045L0002

• ABB 5SHX0660F0001

• ABB 5SHY4055L0002

• ABB 5SHY5045L0001

Installation Instructions

1. Preparation: Ensure all surfaces are clean and dry. Check the mechanical mount and electrical connections.

2. Mounting: Use a hydraulic press or specified tool to apply uniform pressure when installing the disc-type thyristor into its designated cooling assembly.

3. Torque Settings: Follow ABB’s torque specifications to avoid damaging the component.

4. Cooling Arrangement: Install appropriate forced-air or liquid cooling systems according to the expected load conditions.

5. Electrical Connection: Securely connect the device to the circuit using high-quality, vibration-resistant conductors.

6. Testing: Perform insulation resistance tests and initial low-voltage functionality checks after installation.

7. Commissioning: Gradually apply load under supervision to monitor initial performance.

Important Note: Always follow the ABB technical manual and safety regulations during installation to ensure optimal device performance and safety.

Recommended Related Models

Recommended Popular ABB Models

FAQ (Frequently Asked Questions)

Q1: What is the maximum operating temperature for the ABB 5SHX0660F0002?
A1: The maximum operating temperature is +125°C, and the storage temperature can go up to +150°C.

Q2: Can the ABB 5SHX0660F0002 be used in railway applications?
A2: Yes, it is suitable for railway traction systems and other transportation-related high-power electronics.

Q3: What type of cooling system is recommended?
A3: Both forced air and liquid cooling are acceptable depending on the operational load; liquid cooling is preferred for heavy-duty continuous use.

Q4: Is the ABB 5SHX0660F0002 compatible with third-party drive systems?
A4: Yes, it is compatible with various third-party industrial drive and control systems when integrated correctly.

Q5: How is the component mounted during installation?
A5: The thyristor is mounted using a press pack method to ensure even mechanical pressure and optimal thermal transfer.

Q6: What are the key benefits of using the ABB 5SHX0660F0002 over similar products?
A6: The key advantages are superior thermal performance, mechanical robustness, long lifespan, and low electrical losses.
