Product Introduction

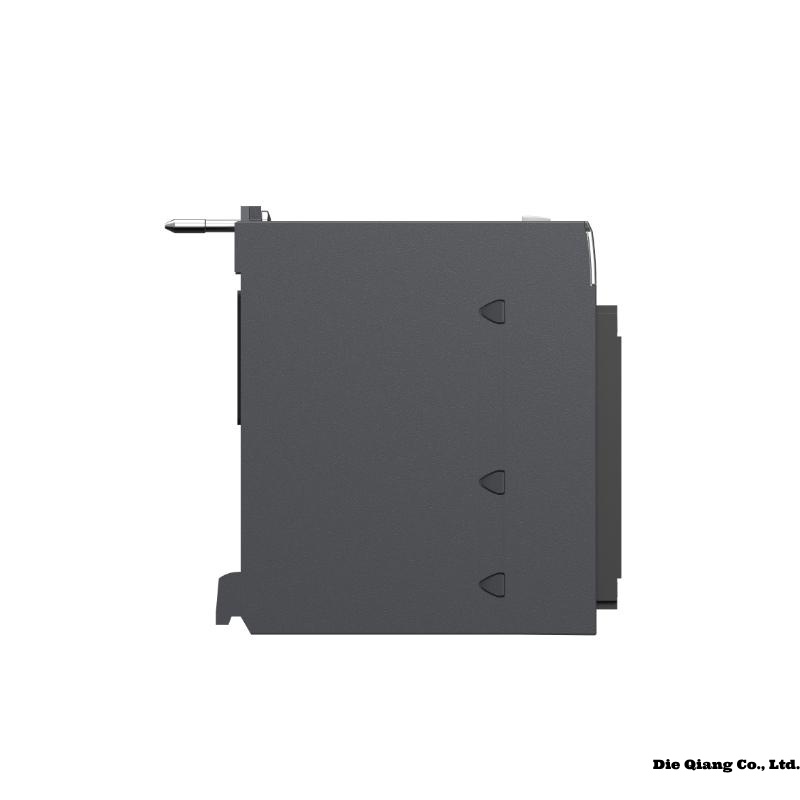

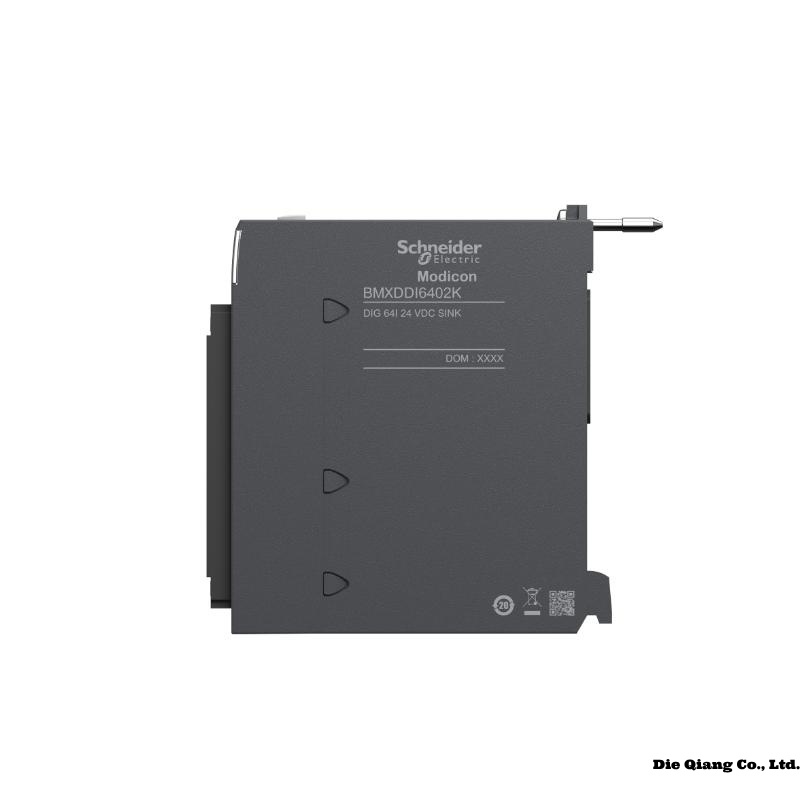

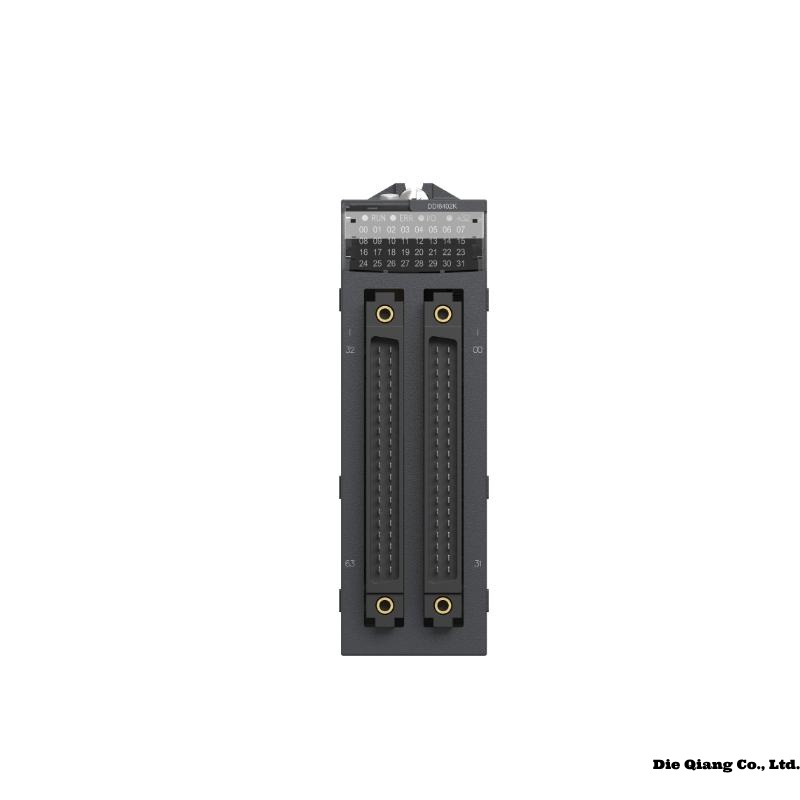

The Schneider BMXDDI6402K is a high-density digital input module designed for use in Schneider Electric’s Modicon M340 automation platform. This module features 64 discrete inputs, making it ideal for applications that require a large number of digital signals to be monitored within a compact space. Engineered with advanced diagnostics and robust filtering capabilities, the BMXDDI6402K is tailored for modern industrial environments where space-saving and performance are critical.

This module is DIN rail mountable and communicates via the M340 backplane. It supports 24 VDC sink/source inputs, offering flexibility for both PNP and NPN wiring schemes. Its design ensures optimal reliability, fast response times, and seamless integration into existing Modicon architectures.

Product Advantages

• High-Density Input: 64 digital inputs in a single module, reducing space and wiring complexity.

• Dual Wiring Possibility: Compatible with both PNP and NPN sensors, increasing application flexibility.

• Optimized Filtering: Provides configurable input filtering for noise immunity in electrically noisy environments.

• DIN Rail Mounting: Simple and reliable mechanical installation.

• Fast Processing: Low signal acquisition delay, suitable for real-time control.

• Integrated Diagnostics: Facilitates maintenance by providing fault indicators and status LEDs per channel group.

• Robust Construction: Designed to withstand harsh industrial conditions including vibration and temperature variations.

Technical Specifications

Applications

• Manufacturing Automation: For monitoring multiple sensor inputs across production lines.

• Process Control Systems: Integrated into PLC systems to collect status from field devices.

• Building Management Systems: For managing extensive lighting and sensor networks.

• Material Handling Systems: Used in conveyor and sorting systems to read from multiple limit switches.

• Water and Wastewater Treatment: Monitoring valves, float switches, and process indicators.

Compatible Models

• Modicon M340 CPU Modules (e.g., BMXP342020)

• BMXCPS2010 Power Supply Module

• BMXNOE0100 Network Interface Module

• BMXFTB2820 Terminal Block for Wiring

• BMXEIA0100 Serial Communication Module

• BMXPRA0100 Profibus Adapter Module

Installation Instructions

1. Ensure Power Is Off: Before installation, disconnect the power supply to avoid electric shock or equipment damage.

2. DIN Rail Mounting: Clip the BMXDDI6402K securely onto the DIN rail within the Modicon M340 backplane system.

3. Connect Terminal Block: Use compatible terminal blocks (e.g., BMXFTB2820) for connecting field wiring.

4. Wiring Inputs: Connect sensors using proper PNP or NPN configuration according to application needs.

5. Verify Grounding: Ensure proper earthing and shielding to reduce noise and protect the module.

6. Commissioning: Power on the PLC system, and verify the status LEDs to confirm proper operation.

7. Software Configuration: Use Unity Pro or EcoStruxure Control Expert to configure and map inputs in the PLC logic.

6 Related Models

8 Popular Schneider Models

Frequently Asked Questions (FAQ)

Q1: What is the maximum number of inputs supported by BMXDDI6402K?
A1: The BMXDDI6402K supports 64 discrete digital inputs.

Q2: Can this module be used with both PNP and NPN sensors?
A2: Yes, the BMXDDI6402K supports both sink and source configurations, making it compatible with PNP and NPN devices.

Q3: What is the typical application of this input module?
A3: It is typically used in automated production lines, process control systems, and systems requiring high input density like SCADA or BMS.

Q4: What is the difference between BMXDDI6402K and BMXDDI3202K?
A4: BMXDDI6402K offers 64 digital inputs, while BMXDDI3202K offers only 32 inputs, making the 6402K more suitable for high-density applications.

Q5: Does this module support hot swapping?
A5: No, the BMXDDI6402K does not support hot swapping. Power must be off before removal or installation.

Q6: Which programming software should I use for configuration?
A6: Schneider’s EcoStruxure Control Expert (formerly Unity Pro) is recommended for configuring and programming this module.
