Product Introduction

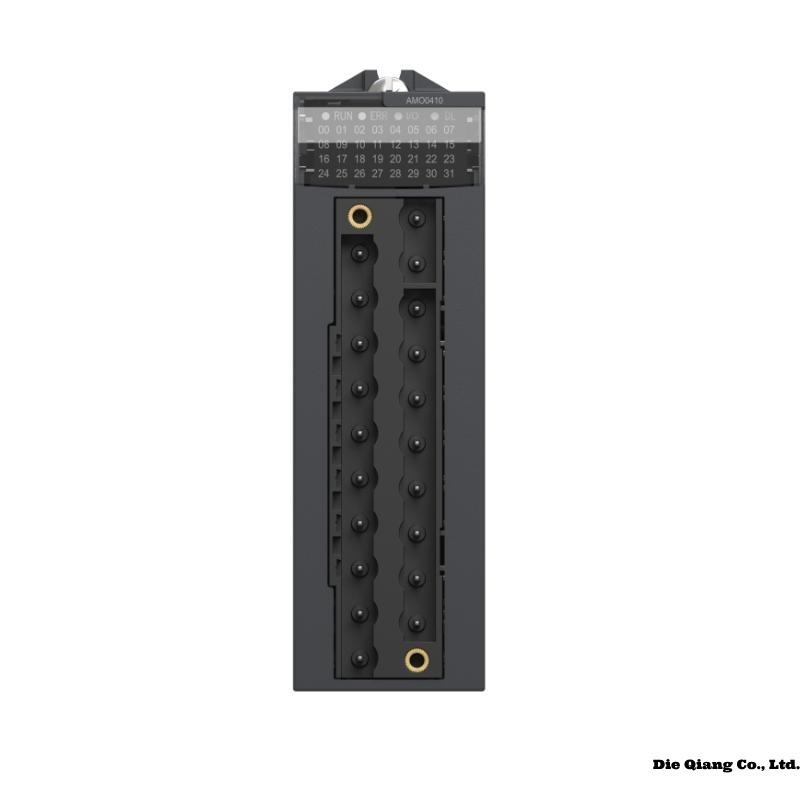

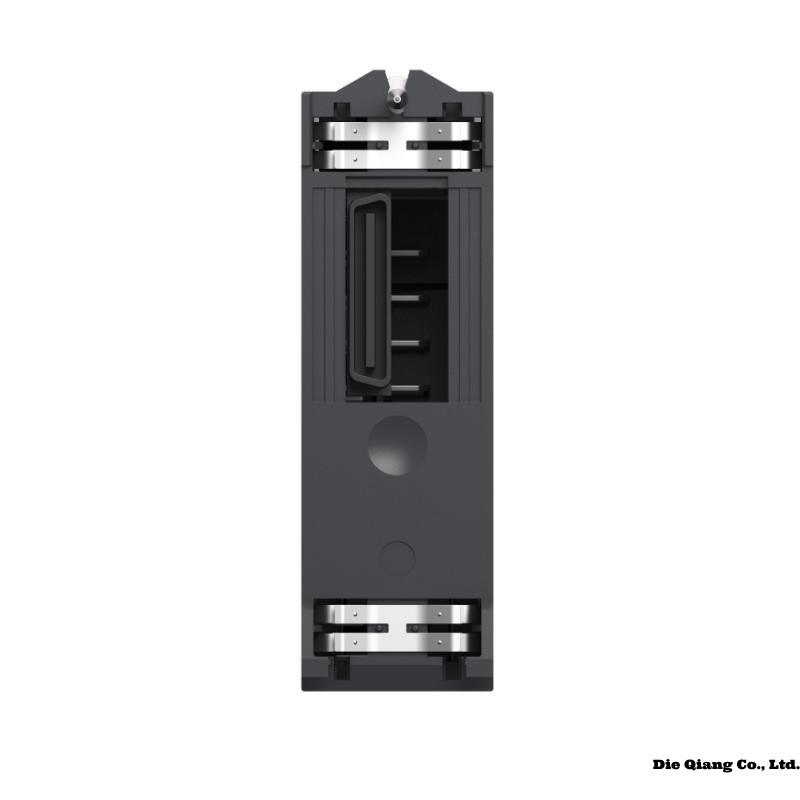

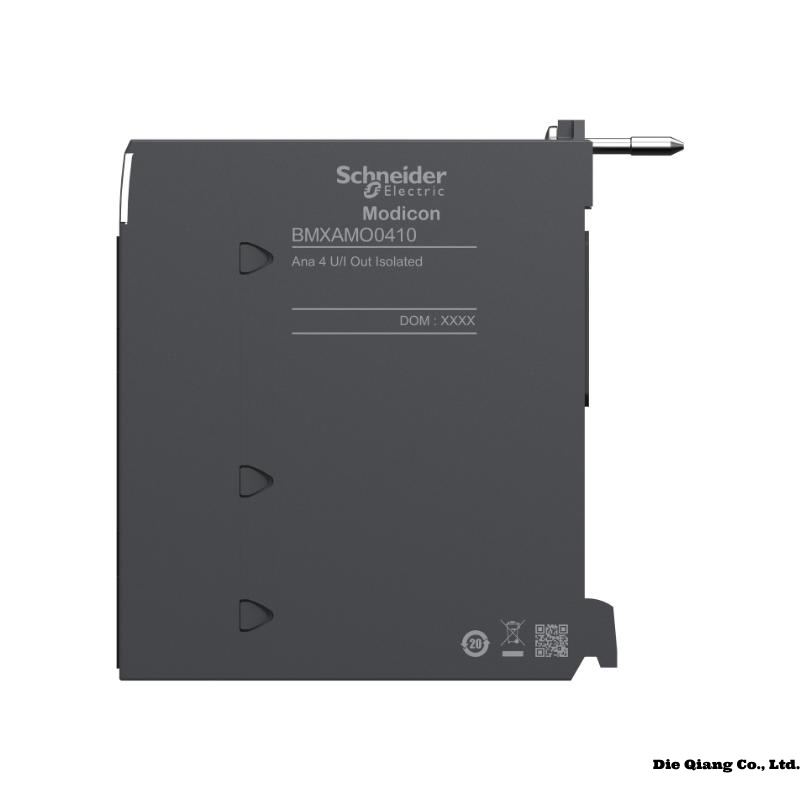

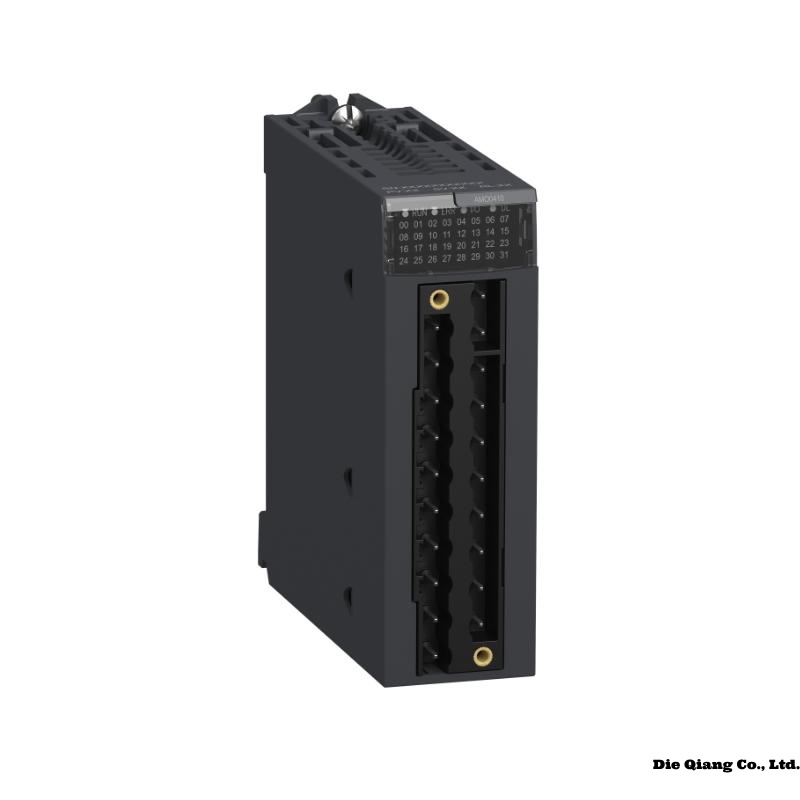

The Schneider Electric BMXAMO0410 is an advanced analog output module designed for the Modicon M340 Programmable Logic Controller (PLC) system. Engineered to provide high-performance analog signal output, the module features 4 independent analog outputs supporting current signals. It is an ideal choice for controlling actuators, valves, and other analog devices within industrial automation systems.

Built with Schneider’s robust design philosophy, the BMXAMO0410 ensures precise and stable analog signal control across a wide range of industrial applications. It enhances the Modicon M340 platform’s capabilities by offering seamless integration and real-time output signal processing in complex control scenarios.

The module supports output ranges of 0–20 mA and 4–20 mA, with 12-bit resolution, ensuring accurate analog control where signal fidelity is critical.

Product Advantages

• High Precision Output: 12-bit resolution ensures stable and accurate analog signal control for sensitive industrial applications.

• Modicon M340 Integration: Seamlessly integrates into the Modicon M340 system, enabling scalable and modular system design.

• Rugged Design: Built to perform in industrial environments with resistance to shock, vibration, and electromagnetic interference.

• Flexible Signal Range: Supports both 0–20 mA and 4–20 mA current outputs, catering to a wide variety of field devices.

• Diagnostics & LED Indicators: Integrated status and fault LEDs provide real-time feedback for maintenance and troubleshooting.

• Isolation Protection: Channels are galvanically isolated to minimize signal interference and enhance system reliability.

Technical Specifications

Applications

• Process Automation: Controls actuators and analog field devices in oil & gas, chemical, and pharmaceutical industries.

• HVAC Systems: Used in building management systems for precise temperature and flow control.

• Water Treatment Plants: Regulates pump speeds, valve positions, and chemical dosing.

• Energy Management: Enables analog signal control in distributed energy resources and substations.

• Food and Beverage: Supports high-speed analog output in automated packaging and processing lines.

Compatible Models

The BMXAMO0410 is designed for seamless integration with the following Schneider Electric components:

• Modicon M340 CPUs: BMXP342020, BMXP3420302

• Backplanes: BMXRMS004, BMXRMS008

• Power Supply Modules: BMXCPS2010, BMXCPS3020

• Other I/O Modules: BMXAMI0410 (analog input), BMXDDO3202 (digital output)

• Communication Modules: BMXNOC0401 (Ethernet), BMXNOR0200 (Remote I/O)

These components ensure complete system modularity and flexibility for varied automation requirements.

Installation Instructions

1. Power Down the System: Before installation, ensure the PLC system is powered off to prevent electrical shock or module damage.

2. Mounting: Secure the BMXAMO0410 module onto the DIN rail backplane. Ensure firm contact with the connector interface.

3. Wiring: Connect analog output wires to the designated terminal block. Ensure the correct current loop configuration and use shielded cables for noise reduction.

4. Module Addressing: Configure the module in Unity Pro / EcoStruxure Control Expert software. Assign logical addressing as required for your application.

5. System Configuration: Within the software environment, declare the module and define the output parameters including range and scaling.

6. Validation: Once installed and configured, power on the PLC and verify output signals using a multimeter or loop calibrator.

7. Diagnostics: Use onboard LED indicators and software tools to monitor performance and detect faults.

6 Related or Similar Models (Same Series or Function)

8 Popular Schneider Models

Frequently Asked Questions (FAQ)

Q1: What type of signal does the BMXAMO0410 support?
A1: The module supports analog current output signals in the ranges of 0–20 mA and 4–20 mA.

Q2: Can the BMXAMO0410 be used in safety-critical applications?
A2: While it offers high reliability, the module itself is not certified for SIL-rated safety systems unless integrated within a certified architecture.

Q3: What software is used to configure this module?
A3: The BMXAMO0410 is configured using EcoStruxure Control Expert (formerly Unity Pro), which provides full support for parameterization, diagnostics, and simulation.

Q4: Is the output isolated per channel?
A4: The module provides channel-to-bus isolation, but not between individual channels.

Q5: What is the typical use case for this analog output module?
A5: It is commonly used to control analog actuators such as proportional valves, speed controllers, and similar devices in industrial environments.

Q6: Can this module be hot-swapped during operation?
A6: No, the BMXAMO0410 does not support hot swapping. The PLC system must be powered down before removing or inserting the module.
