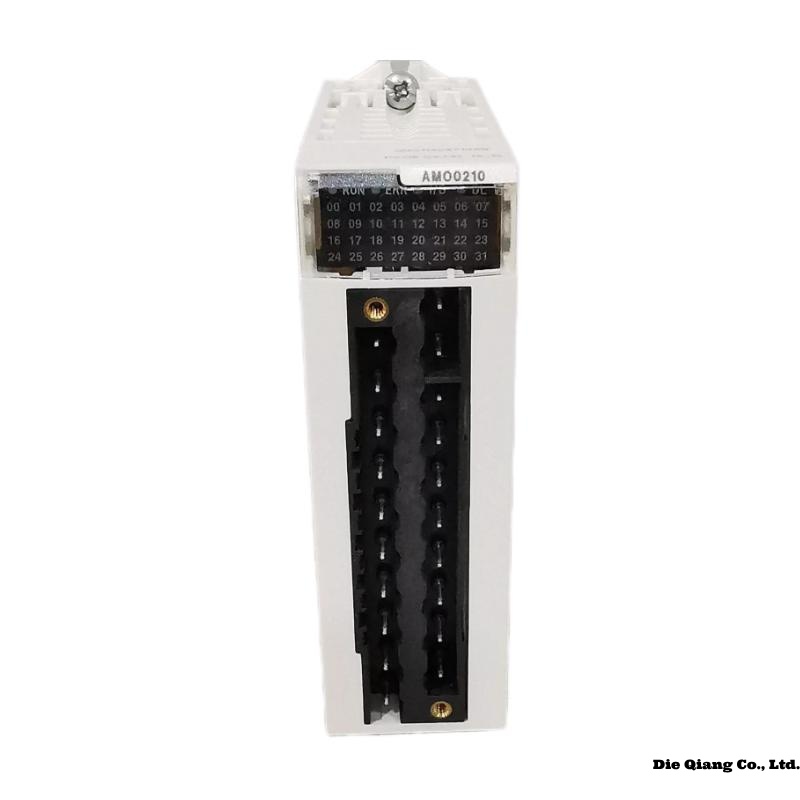

Schneider BMXAMO0210 Analog isolation high level output module

Short Description:

Schneider BMXAMO0210 Product Introduction The Schneider BMXAMO0210 is a high-performance analog output module from Schneider Electric’s Modicon M340 series. It is designed for industrial auto……


  • Manufacturer: Schneider
  • Product Number: BMXAMO0210
  • Condition: Analog isolation high level output module
  • Origin: France
  • Dimensions: 93 x 33 x 104 mm
  • Weight: 0.144 kg
  • Condition: New & In Stock
  • Payment Methods: T/T, PayPal, Western Union
  • Shipping Port: Xiamen, China
  • Lead Time: 1-3 Working Days
  • Warranty: One Year
  • Certificate: COO
  • Courier partners: DHL, UPS, TNT, FedEx and EMS.
1

Product Detail

Contact Us

Frequently FAQ

Real photos

Comment

Company Information
E-mail [email protected]
Mobile +8615980777398
Whatsapp +8615980777398
WeChat +8615980777398

Schneider BMXAMO0210 Product Introduction

The Schneider BMXAMO0210 is a high-performance analog output module from Schneider Electric’s Modicon M340 series. It is designed for industrial automation applications, providing precise analog signal output for controlling various devices such as valves, actuators, and drives. This module ensures reliable communication and seamless integration within PLC systems, making it ideal for complex automation environments.

The BMXAMO0210 supports 0-20 mA or 4-20 mA current output signals, ensuring compatibility with a wide range of industrial instruments. Its robust design and high accuracy make it suitable for demanding applications in process control, manufacturing, and energy management.


Product Advantages

  1. High Precision – Delivers accurate analog output signals with minimal deviation, ensuring precise control.

  2. Wide Compatibility – Supports standard current output ranges (0-20 mA / 4-20 mA) for seamless integration.

  3. Robust Construction – Built to withstand harsh industrial environments with high resistance to electrical noise.

  4. Easy Configuration – Simple setup via PLC programming tools, reducing installation time.

  5. Modular Design – Allows flexible expansion within the Modicon M340 rack system.

  6. Diagnostic Features – Provides real-time monitoring and fault detection for improved maintenance.


Technical Specifications

Parameter Value
Product Code BMXAMO0210
Type Analog Output Module
Output Channels 2
Output Signal 0-20 mA / 4-20 mA
Resolution 12-bit
Accuracy ±0.3% of full scale
Voltage Supply 24V DC (±20%)
Power Consumption 2.5W
Dimensions  93 x 33 x 104 mm
Weight 0.144 kg
Operating Temp. -20°C to +60°C
Protection Class IP20
Communication Backplane (Modicon M340 bus)

Applications

The BMXAMO0210 is widely used in industries requiring precise analog control, including:

  • Process Automation – Regulating flow, pressure, and temperature in chemical plants.

  • Manufacturing – Controlling motor speeds and actuator positions.

  • Energy Management – Monitoring and adjusting power distribution systems.

  • Water Treatment – Managing pump and valve operations.

  • HVAC Systems – Adjusting fan and damper controls.


Compatible Products

The BMXAMO0210 works seamlessly with the following Schneider Electric components:

  • PLCs: Modicon M340 (BMXP34**** series)

  • Power Supplies: BMX CPS 2000

  • Communication Modules: BMX NOM 0200 (Ethernet)

  • Digital I/O Modules: BMX DDM 16022

  • HMI Panels: Magelis XBT GT Series


Installation Instructions

  1. Power Off – Ensure the PLC system is powered down before installation.

  2. Module Insertion – Align the BMXAMO0210 with an available slot in the Modicon M340 rack and push firmly until locked.

  3. Wiring – Connect the analog output terminals to the target devices using shielded cables for noise reduction.

  4. Configuration – Use Unity Pro or Control Expert software to configure the module parameters.

  5. Testing – Power on the system and verify signal output using a multimeter or PLC diagnostics.

  6. Secure Mounting – Ensure all screws are tightened to prevent vibration-related issues.


Recommended Related Models (Same Series)

Model Type Channels Signal Range Voltage Dimensions (mm) Weight
BMXAMO0410 Analog Output 4 0-10V / ±10V 24V DC 45 x 126 x 117 0.35 kg
BMXAMI0410 Analog Input 4 0-20 mA / 4-20 mA 24V DC 45 x 126 x 117 0.3 kg
BMXART0814 RTD/Thermocouple 8 PT100 / Ni100 24V DC 45 x 126 x 117 0.4 kg
BMXAMM0200 Mixed Analog I/O 2 In / 2 Out 0-10V / 4-20 mA 24V DC 45 x 126 x 117 0.32 kg
BMXAMO0200 Analog Output 2 ±10V 24V DC 45 x 126 x 117 0.3 kg
BMXAMI0810 Analog Input 8 0-10V 24V DC 45 x 126 x 117 0.38 kg

Top 8 Popular Schneider Electric Models

Model Type Key Parameters Voltage Dimensions (mm) Weight
TM5SAI4PH Analog Input 4 ch, 0-10V / ±10V / 4-20 mA 24V DC 90 x 23.5 x 70 0.1 kg
TM5SDO4T Digital Output 4 ch, 24V DC, Transistor 24V DC 90 x 23.5 x 70 0.08 kg
ATV320U15N4 VFD 1.5 kW, 3-Phase, 380-480V 380-480V AC 150 x 73 x 155 1.5 kg
LC1D09BD Contactor 9A, 24V DC Coil 24V DC 45 x 55 x 90 0.3 kg
RM35JA32MR Relay 8A, 3 CO, 24V DC 24V DC 22.5 x 90 x 83 0.15 kg
NSX100N Circuit Breaker 100A, 3P, 480V 480V AC 105 x 70 x 75 1.2 kg
Harmony XB5 Push Button 22mm, Illuminated, IP65 24V DC 22mm (Dia) 0.05 kg
Altivar Process Drive 0.75-630 kW, Ethernet/IP 380-480V AC Varies by model 5-50 kg

Frequently Asked Questions (FAQ)

Q1: What is the resolution of the BMXAMO0210?
A1: The module has a 12-bit resolution, ensuring high-precision analog output.

Q2: Can the BMXAMO0210 be used in high-temperature environments?
A2: Yes, it operates within -20°C to +60°C, suitable for most industrial settings.

Q3: Does this module support voltage output?
A3: No, the BMXAMO0210 only supports current output (0-20 mA / 4-20 mA).

Q4: What software is needed to configure the BMXAMO0210?
A4: Schneider’s Unity Pro or Control Expert software is required for configuration.

Q5: Is shielded wiring necessary for analog signals?
A5: Yes, shielded cables are recommended to minimize electrical noise interference.

Q6: Can I hot-swap the BMXAMO0210?
A6: No, the module should only be installed or removed when the system is powered off.
