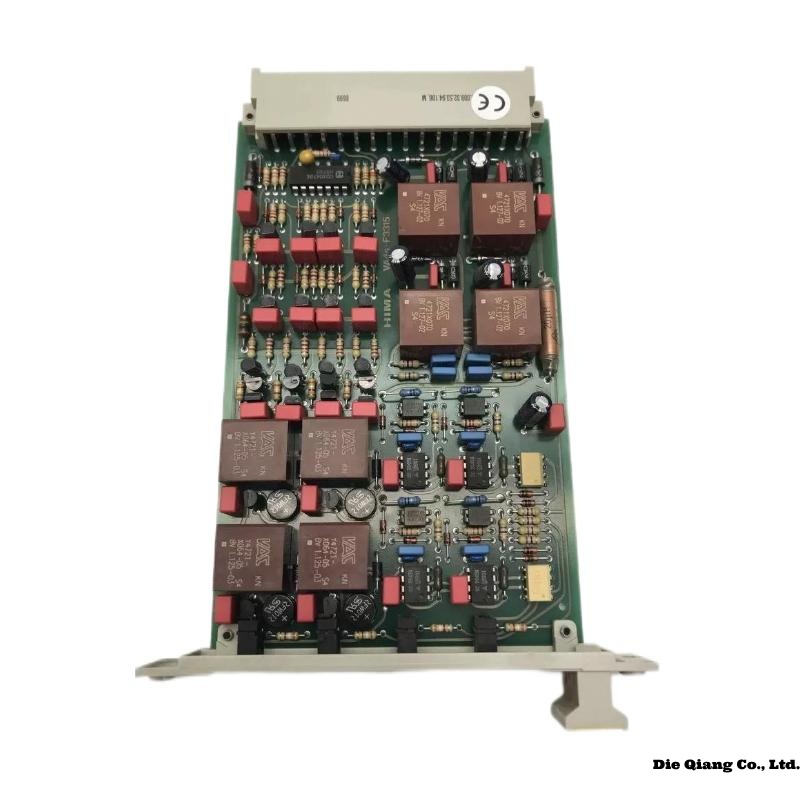

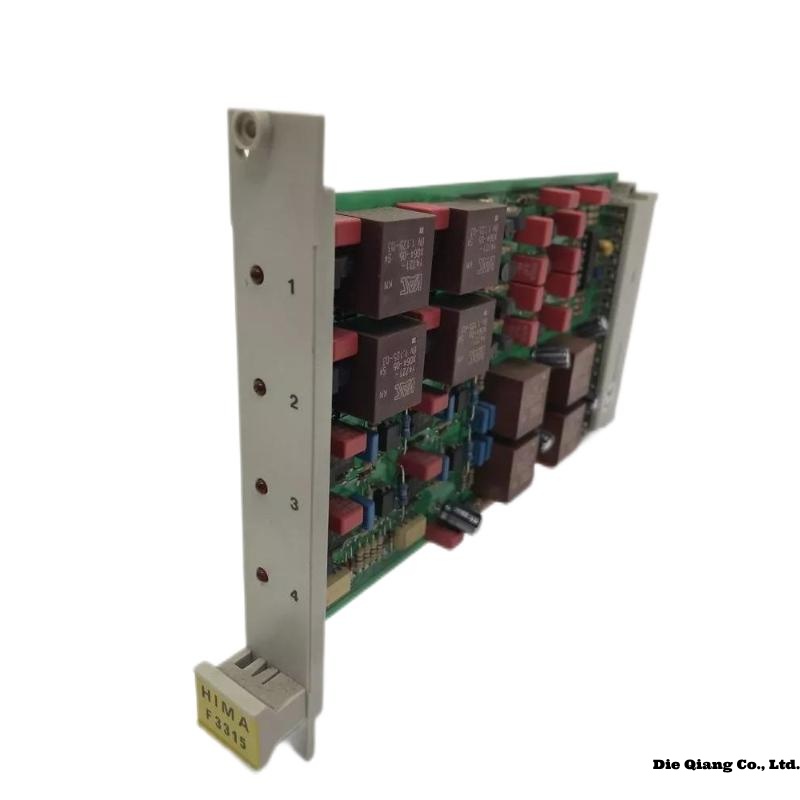

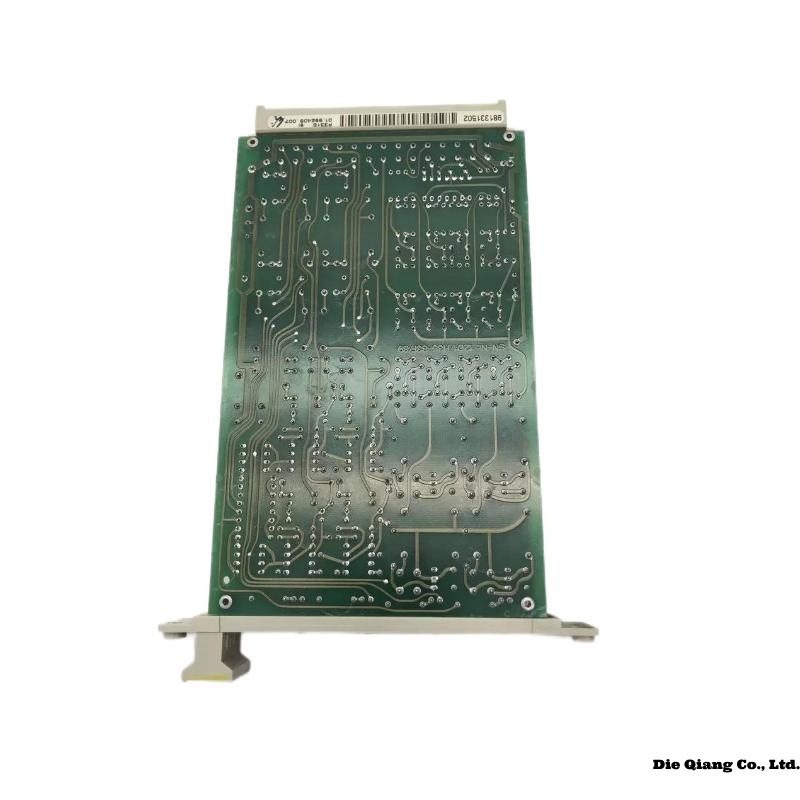

Product Introduction – HIMA F3315 (98 1331502)

The HIMA F3315 is a high-reliability digital output module specifically engineered for use in HIMA’s safety-related programmable electronic systems. Known for its robust fail-safe design, the F3315 is deployed in applications that demand exceptional operational safety, such as process industries, petrochemical plants, and energy generation facilities.

Designed with dual-channel technology and diagnostic coverage, the F3315 ensures that critical systems can maintain their integrity and meet stringent safety requirements, especially in SIL3-rated environments. This module forms part of the HIMA Planar4 system architecture and offers excellent compatibility, precise switching, and advanced fault detection capabilities.

The F3315 seamlessly integrates into HIMA’s safety system platforms and provides a secure interface between control logic and field devices such as solenoids, relays, or actuators.

Product Advantages

• Certified for SIL3 Applications: Complies with IEC 61508, enabling deployment in the highest safety-critical environments.

• Dual Channel Redundancy: Enhances operational safety with two independent output paths for each channel.

• Comprehensive Diagnostics: Includes line break detection, short-circuit monitoring, and module health diagnostics.

• Flexible Integration: Compatible with HIMA’s Planar4 system, allowing straightforward module interchangeability.

• Compact and Durable: Offers a small form factor that saves cabinet space while withstanding harsh industrial conditions.

• Maintenance-Friendly Design: Hot-swap capability and LED status indicators simplify on-site maintenance and troubleshooting.

Technical Specifications

Product Applications

The HIMA F3315 is utilized in a wide range of industrial safety applications, including:

• Emergency shutdown systems (ESD)

• Fire and gas detection systems

• Burner management systems (BMS)

• Pipeline and tank safety control

• Nuclear power instrumentation

• Oil and gas platform safety logic

• Safety Instrumented Systems (SIS) in refineries and chemical plants

Its robust safety features make it ideal for operations where system failure cannot be tolerated, and maximum uptime and safety integrity are essential.

Compatible Models and System Integration

The F3315 is part of the HIMA Planar4 family and works seamlessly with the following modules and systems:

• HIMA CPU F8652X

• HIMA F7126 Power Supply Module

• HIMA F7553 Communication Module

• HIMA F6220 Relay Output Module

• HIMA F6705 Base Plate

• HIMA F7130 I/O Interface Module

These components collectively form a modular and scalable architecture suitable for complex safety instrumented functions.

Installation Instructions

1. Preparation: Ensure the power to the system is turned off before beginning installation.

2. Rack Placement: Mount the F3315 module into the appropriate slot of the HIMA base rack (Planar4 system). Make sure the orientation aligns with the guide rails.

3. Connector Check: Insert the module firmly into the connector socket to ensure a secure electrical connection.

4. Wiring: Connect the field wiring to the output terminals according to the wiring diagram in the system manual. Maintain proper polarity and cable shielding.

5. Power-Up and Testing: After installation, restore power and observe the LED indicators. Run a diagnostic test using the HIMA configuration tool to verify channel operation.

6. Documentation: Record the module installation and configuration in the system maintenance log.

6 Related or Same Series Models

8 Popular HIMA Models

Frequently Asked Questions (FAQ)

Q1: What safety standard does the HIMA F3315 comply with?
A1: The F3315 is certified for SIL3 according to IEC 61508, ensuring suitability for high-integrity safety applications.

Q2: Can the F3315 module detect line breaks or short circuits?
A2: Yes, the module features integrated diagnostics for line breaks, short circuits, and individual channel health monitoring.

Q3: Is the F3315 compatible with other brands of safety systems?
A3: No, the F3315 is designed specifically for use within the HIMA Planar4 system and is not compatible with third-party platforms.

Q4: What is the maximum output current per channel?
A4: Each output channel supports up to 0.5 A maximum current at 24 VDC.

Q5: Does the F3315 support hot-swapping?
A5: Yes, the module supports hot-swapping, allowing it to be replaced without shutting down the entire system.

Q6: What tools are needed for configuration or diagnostics?
A6: Configuration and diagnostics are typically performed using HIMA’s ELOP II or SILworX engineering tools, depending on the system version.
