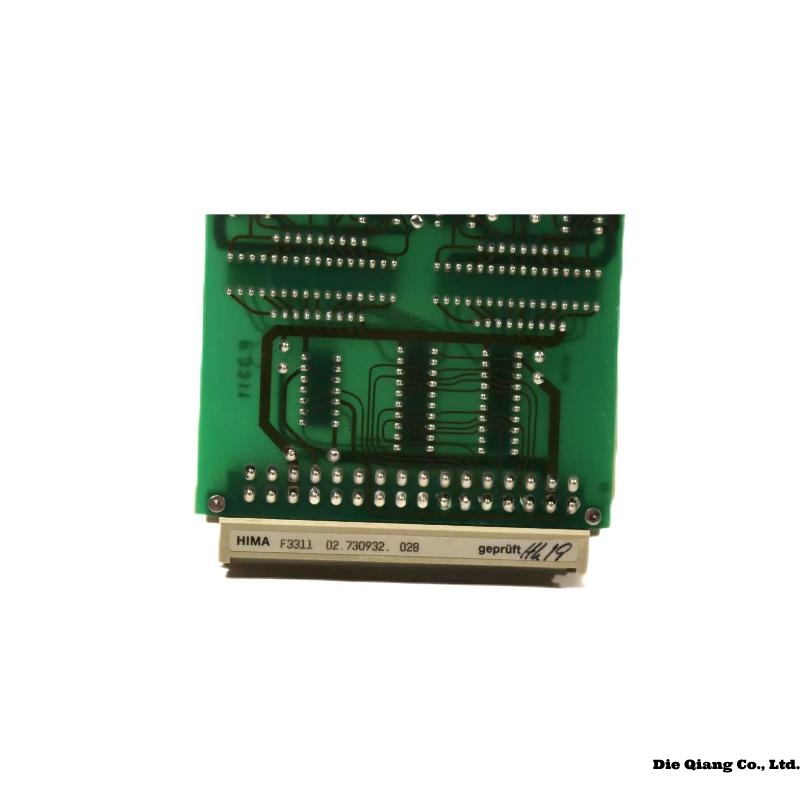

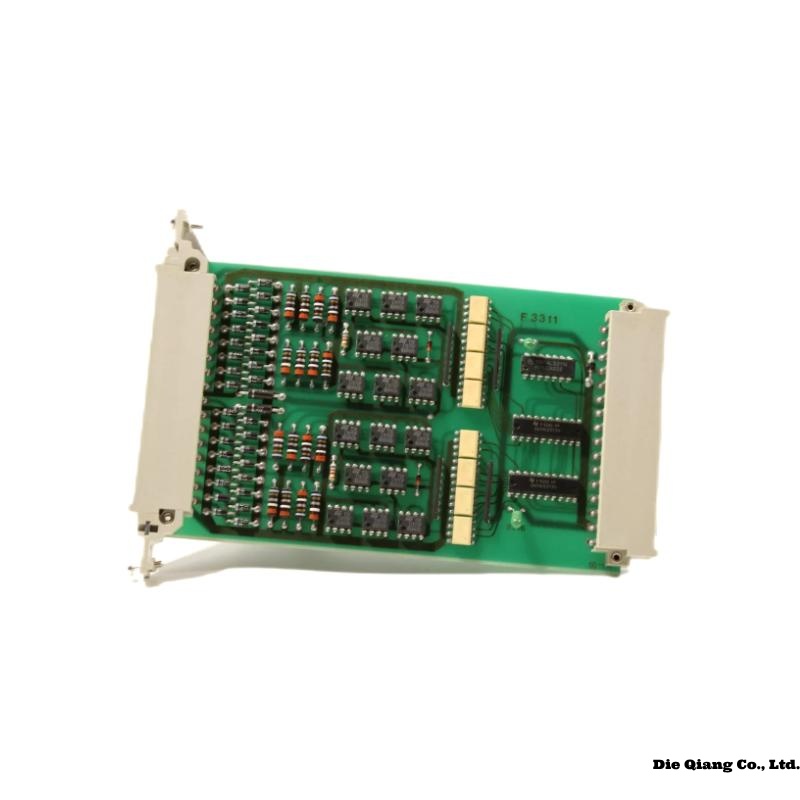

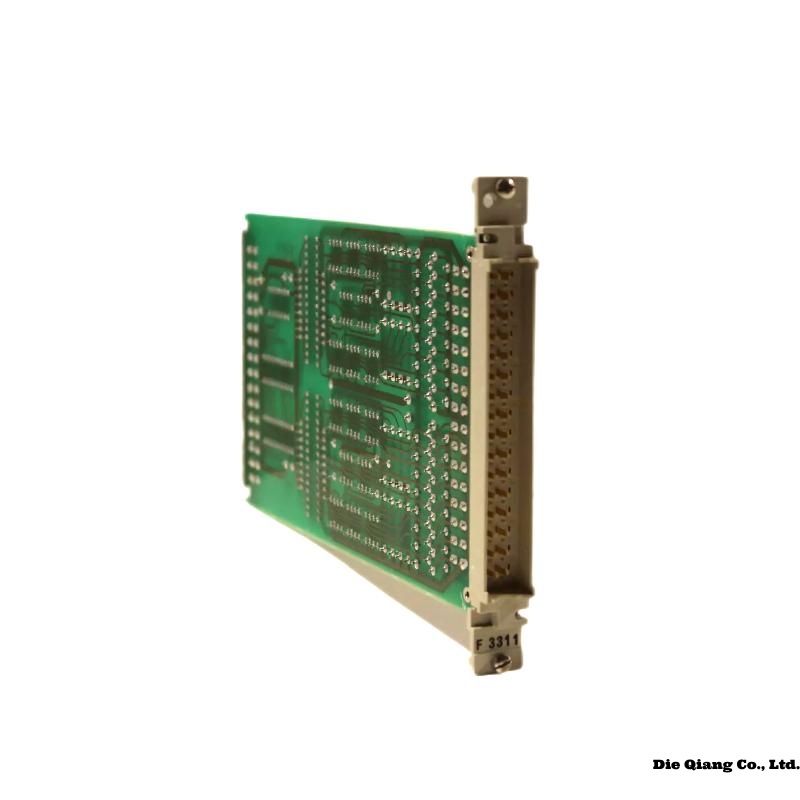

HIMA F3311 Product Introduction

The HIMA F3311 is a high-performance safety relay designed for industrial applications requiring reliable and fail-safe operation. It is part of HIMA’s renowned safety product lineup, known for its robust construction, advanced safety features, and compliance with international safety standards. The F3311 is widely used in machinery, process automation, and other critical systems where safety is paramount.

The relay offers a combination of flexibility, durability, and ease of integration, making it suitable for a variety of safety-related functions such as emergency stop circuits, safety gate monitoring, and interlocking systems.

Product Advantages

1. High Reliability – The F3311 is engineered for fail-safe operation, ensuring continuous performance even in harsh industrial environments.

2. Compliance with Safety Standards – Meets IEC 61508, ISO 13849, and other relevant safety certifications.

3. Modular Design – Allows for easy integration into existing safety systems.

4. Wide Voltage Range – Supports multiple input voltages, enhancing compatibility.

5. Diagnostic Capabilities – Built-in diagnostics for quick troubleshooting and maintenance.

6. Durable Construction – Designed to withstand vibrations, temperature fluctuations, and electrical noise.

Technical Parameters

Applications

The HIMA F3311 is widely used in:

• Emergency Stop Systems – Ensures immediate shutdown in hazardous situations.

• Safety Gate Monitoring – Prevents machine operation when guards are open.

• Interlocking Systems – Used in automated production lines for safe operation.

• Process Automation – Provides safety functions in chemical and oil & gas industries.

• Robotics – Ensures safe interaction between robots and human operators.

Compatible Models for Integration

The HIMA F3311 can be paired with the following complementary models:

• HIMA F3232 – Safety controller for expanded logic functions.

• HIMA F3356 – Dual-channel safety relay for higher redundancy.

• HIMA F3400 – Interface module for connecting to PLCs.

• HIMA F3500 – Diagnostic module for advanced monitoring.

Installation Instructions

1. Mounting – Secure the relay on a DIN rail in a control cabinet.

2. Wiring – Connect input voltage (24V DC) to terminals as per the wiring diagram.

3. Safety Contacts – Wire NO/NC contacts to the respective safety devices (e.g., E-stop buttons).

4. Testing – Perform a functional test to verify proper operation before full deployment.

5. Maintenance – Regularly inspect connections and perform diagnostic checks.

Recommended Related Models (Same Series)

Popular HIMA Models (Other Series)

Frequently Asked Questions (FAQ)

Q1: What safety standards does the HIMA F3311 comply with?
A1: It complies with IEC 61508, ISO 13849, and UL/CSA standards.

Q2: Can the F3311 be used in high-vibration environments?
A2: Yes, it is designed to withstand vibrations and harsh industrial conditions.

Q3: What is the maximum switching current of the F3311?
A3: It can handle up to 6 A for resistive loads.

Q4: Is the F3311 compatible with PLC systems?
A4: Yes, it can interface with PLCs via safety contacts or dedicated modules like the F3400.

Q5: How do I diagnose a fault in the F3311?
A5: The built-in diagnostic LEDs indicate fault conditions for quick troubleshooting.

Q6: Can the F3311 be used in SIL3 applications?
A6: Yes, it is suitable for Safety Integrity Level (SIL) 3 applications when configured correctly.
