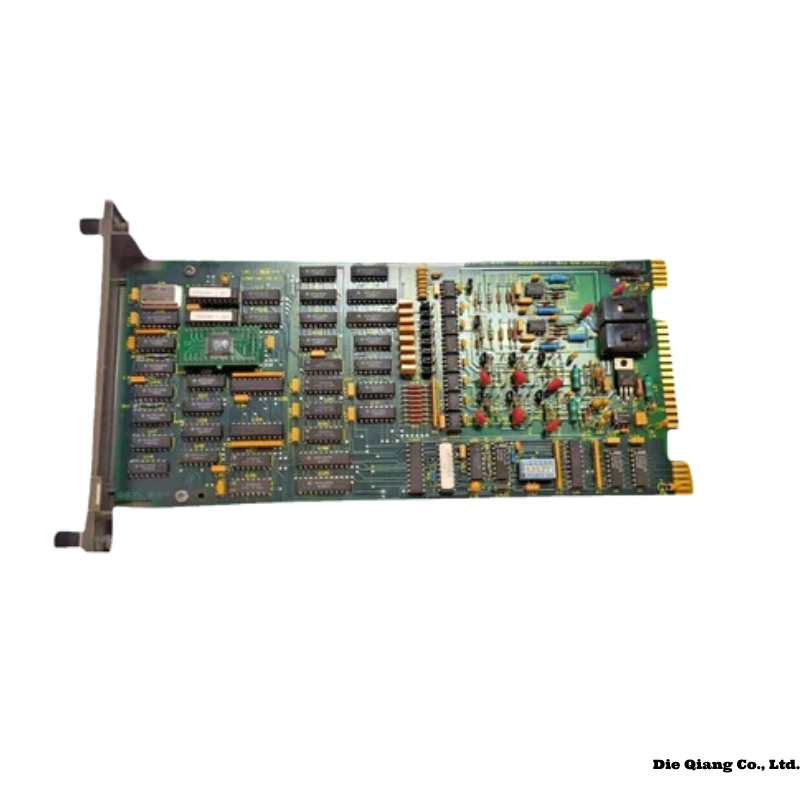

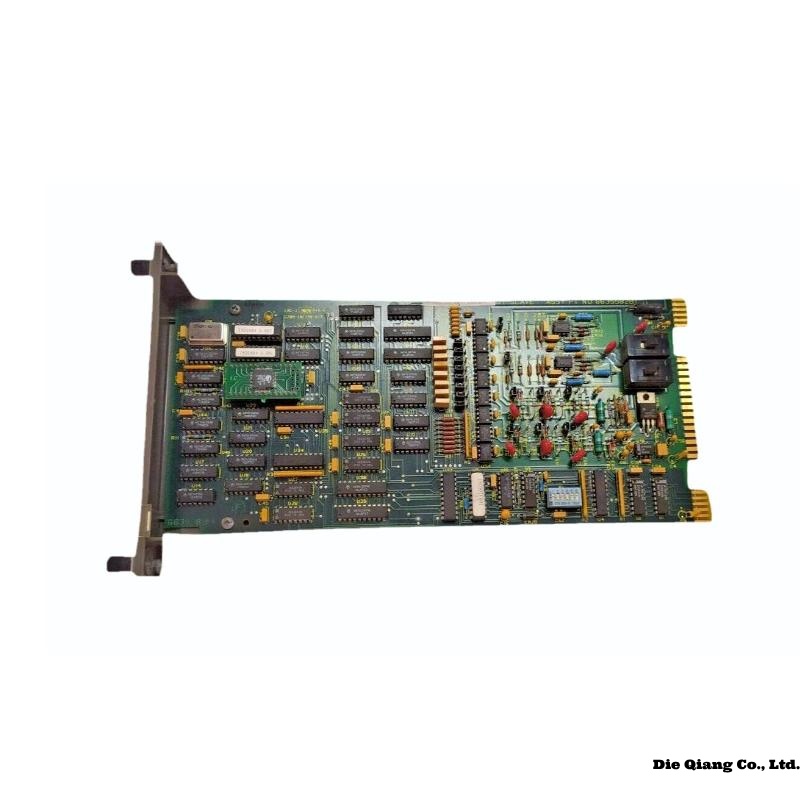

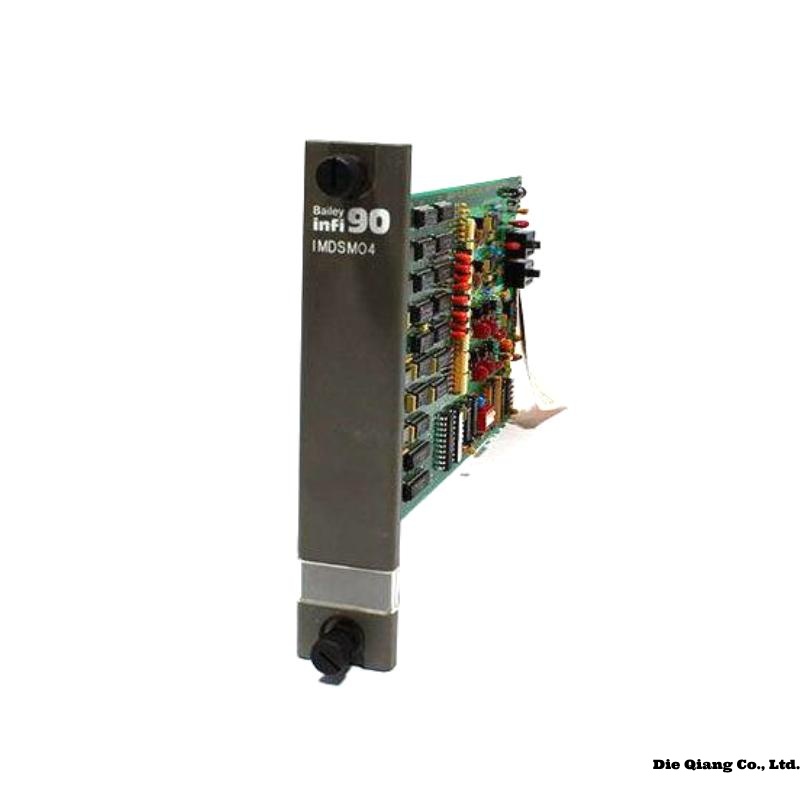

Product Introduction: ABB Bailey IMDSM04

The ABB Bailey IMDSM04 is a high-performance digital input module designed for use in the INFI 90 Distributed Control System (DCS). This industrial-grade module provides real-time data acquisition capabilities by handling discrete digital signals from field devices such as switches, sensors, and relays. Engineered for robust process control applications, the IMDSM04 supports high-density signal input and offers seamless integration with other modules in the INFI 90 series.

The IMDSM04 plays a critical role in control system architectures by collecting binary input data, converting it to digital signals, and communicating them to the controller for further logic operations. With its modular design, high reliability, and compatibility with ABB’s legacy control systems, the IMDSM04 is a trusted component in a variety of automation environments across industries such as power generation, chemical processing, and oil & gas.

Product Advantages

• Robust Compatibility: Fully compatible with the ABB INFI 90 system, ensuring stable communication and easy integration.

• High Reliability: Built with industrial-grade components that are designed to operate reliably in harsh environments.

• Modular Design: Easy installation and maintenance with plug-in capability, reducing downtime.

• Real-Time Monitoring: Enables precise monitoring of digital field inputs with fast response times.

• Signal Isolation: Built-in isolation between field signals and system backplane enhances operational safety.

• Low Power Consumption: Energy-efficient design helps reduce overall system energy usage.

Technical Specifications

Applications

The IMDSM04 module is widely used in industrial environments where discrete signal processing and real-time status monitoring are essential. Its typical applications include:

• Power Generation Plants: Status monitoring of breaker positions, switches, and relay contacts.

• Oil and Gas Industry: Field signal acquisition from pressure switches, limit switches, and interlock systems.

• Chemical Processing Plants: Monitoring of tank level switches, door sensors, and emergency stop signals.

• Water Treatment Facilities: Data acquisition from float switches, solenoid valves, and pump control feedback.

• Industrial Automation: Integration with PLCs and DCS systems for monitoring binary input devices.

Compatible Models for System Integration

The ABB Bailey IMDSM04 is designed to integrate seamlessly with the following control modules and system units within the INFI 90 platform:

• INNIS21 – Network Interface Module

• INICT13 – INFI-NET to Computer Transfer Module

• IMMFP11 – Multi-Function Processor Module

• IMCPM02 – Communication Processor Module

• IMASI23 – Analog Input Module

• IMDSI14 – Digital Input Module (alternative)

These compatible models work together within the control loop architecture to facilitate reliable data acquisition and process control.

Installation Instructions

1. Power Off the System: Ensure that power to the control cabinet and backplane is turned off before starting the installation.

2. Mounting: The IMDSM04 can be inserted into a designated slot on the INFI 90 rack or mounted on a DIN rail using a compatible carrier.

3. Module Insertion: Carefully insert the module into the slot, ensuring the connector pins align properly with the backplane socket.

4. Wiring: Connect field input wires to the terminal block as per the wiring diagram provided in the module’s datasheet. Ensure proper polarity and insulation.

5. Configuration: Set module addressing or configuration jumpers if required by the system logic.

6. Power Up and Test: Restore power and verify communication and input signal detection via the DCS or HMI interface.

7. Diagnostics: Use system diagnostics tools to confirm the correct operation of all input channels.

6 Related Models from the Same or Similar Series

8 Popular ABB Control System Modules

Frequently Asked Questions (FAQ)

Q1: What is the primary function of the ABB IMDSM04 module?
A1: The IMDSM04 serves as a digital input module that captures binary signals from field devices and transmits them to the INFI 90 DCS for monitoring and control.

Q2: Can IMDSM04 be used in hazardous environments?
A2: While the IMDSM04 offers signal isolation and rugged construction, it must be installed within a certified control cabinet suitable for hazardous area applications to comply with safety standards.

Q3: What type of input signals does IMDSM04 accept?
A3: The module accepts discrete (digital) input signals, typically dry contact or 24 VDC voltage signals from field switches and sensors.

Q4: Is hot-swapping supported on the IMDSM04?
A4: No, the IMDSM04 does not support hot-swapping. Power must be turned off before installation or removal to prevent equipment damage.

Q5: How do I know if the module is functioning correctly?
A5: The IMDSM04 features diagnostic indicators and can be tested via the system’s engineering workstation to confirm proper input signal detection and communication.

Q6: What are the maintenance requirements for the IMDSM04?
A6: Routine maintenance includes checking connector integrity, inspecting field wiring, verifying signal inputs, and ensuring the module operates within specified environmental conditions.
