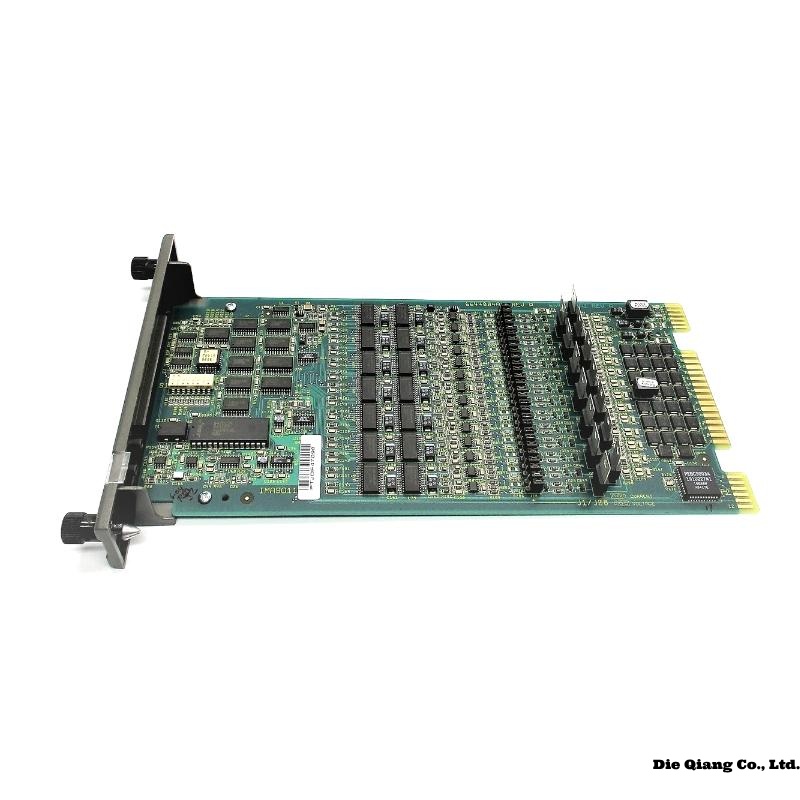

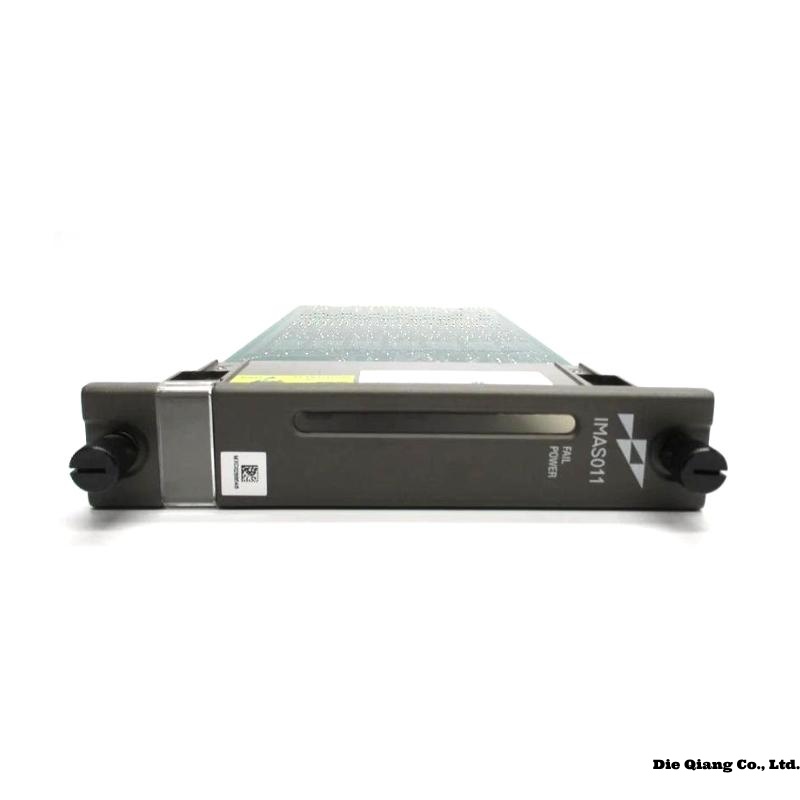

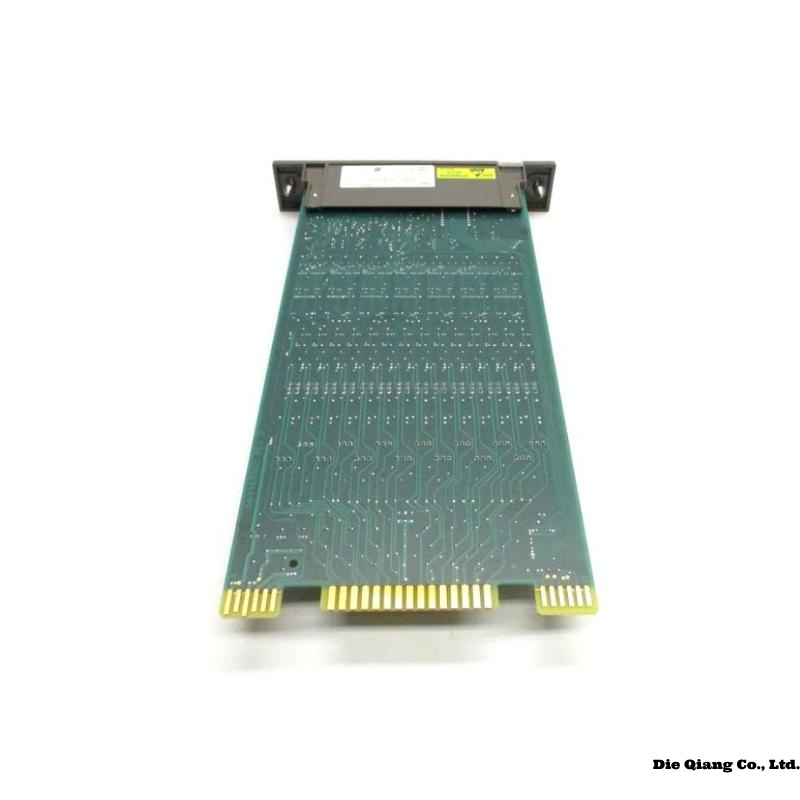

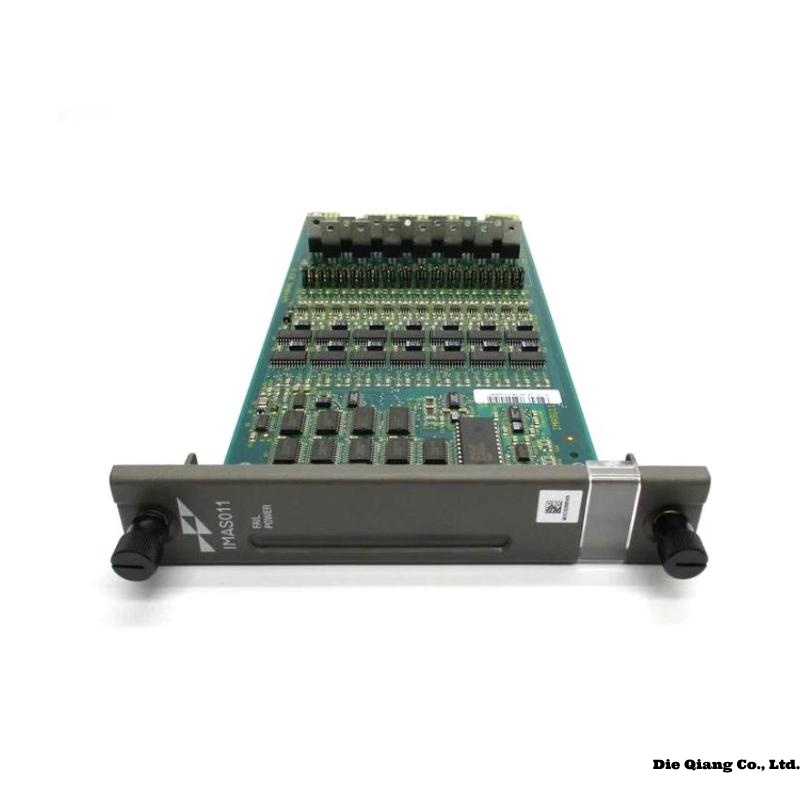

ABB Bailey IMASO11 – Product Overview and Technical Details

Product Introduction

The ABB Bailey IMASO11 is a high-performance analog output module designed for use within the ABB INFI 90 and Symphony series distributed control systems (DCS). This module provides reliable analog signal output capabilities to interface with actuators, control valves, and other field devices in complex industrial automation environments.

The IMASO11 ensures precise output control and integrates seamlessly with ABB’s robust control architecture. It is engineered for critical process applications that require stable and continuous analog signaling, making it an essential component in power generation, oil & gas, chemical processing, and water treatment industries.

Its modular design allows for flexible configuration, easy maintenance, and future scalability. The module is housed in a rugged enclosure suitable for industrial environments and adheres to global safety and quality standards.

Product Advantages

• High Accuracy and Stability: Provides accurate analog output signals with minimal drift over time, enhancing control precision.

• Seamless System Integration: Designed for full compatibility with ABB INFI 90 DCS systems, ensuring smooth data communication and operational continuity.

• Modular Design: Allows for easy replacement and expansion without system downtime, reducing maintenance time and costs.

• Robust Industrial Build: Engineered to withstand harsh industrial conditions including vibration, temperature variations, and electrical noise.

• Diagnostic Capabilities: Built-in diagnostics for real-time monitoring and fault detection for proactive maintenance.

• Long Lifecycle: ABB’s commitment to lifecycle management and backward compatibility ensures continued support and extended operational life.

Technical Specifications

Applications

The IMASO11 is suitable for a wide range of industrial applications, including:

• Power Generation: For controlling steam turbine valves and auxiliary equipment.

• Petrochemical and Oil & Gas: Analog control of valves, dampers, and other process equipment.

• Water and Wastewater Treatment: Actuator control for filtration and distribution systems.

• Chemical Processing: Monitoring and controlling dosing and reaction processes.

• Pulp and Paper: Output control for continuous processing lines.

• Pharmaceuticals: Precision dosing in automated production lines.

Compatible Models for Integration

The IMASO11 module is typically used in combination with the following ABB Bailey INFI 90 modules:

• INNPM12 – Network Processing Module

• IMMPI01 – Multi-point Interface Module

• INFI90 Series Power Supplies (e.g., INPSM01)

• IMASI23 – Analog Input Module

• INPCI01 – Communication Interface Module

• IMDSI12 – Digital Input Module

Installation Instructions

1. Preparation: Ensure all power sources are turned off before installation. Verify compatibility of the IMASO11 with your DCS configuration.

2. Mounting: Install the IMASO11 module into the appropriate slot on the ABB rack assembly or DIN rail.

3. Wiring: Connect the field wiring to the designated terminal block according to the wiring diagram in the technical manual. Use shielded cables for analog output lines to minimize noise interference.

4. Configuration: Use the configuration software (e.g., Composer or Control Builder) to assign output ranges and signal types to each channel.

5. Power Up: Reapply power and observe the module’s status indicators to confirm proper initialization.

6. Testing: Conduct loop tests to validate each analog output channel is transmitting the correct signal as per system design.

7. Commissioning: Finalize installation by updating system documentation and validating outputs with supervisory systems.

6 Related Models (Same Series or Functional Equivalents)

8 Popular ABB Modules (With Specifications)

Frequently Asked Questions (FAQ)

Q1: What type of signals does the IMASO11 module output?
A1: The IMASO11 module provides analog current outputs, configurable to either 0–20 mA or 4–20 mA signals, depending on the application requirements.

Q2: Can the IMASO11 module be used with non-ABB systems?
A2: While technically possible, it is optimized for use with ABB’s INFI 90 and Symphony systems. Compatibility with non-ABB systems would require interface customization.

Q3: Is hot-swapping supported for the IMASO11?
A3: No, the IMASO11 does not support hot-swapping. Power must be disconnected before inserting or removing the module to avoid damage.

Q4: How is the IMASO11 module calibrated?
A4: Calibration is factory-set. However, output range configuration and diagnostics can be managed via ABB’s engineering workstation software.

Q5: What is the typical lifespan of the IMASO11 module?
A5: With proper installation and environmental conditions, the IMASO11 has a typical operational life exceeding 10 years.

Q6: Are firmware updates required for the IMASO11 module?
A6: No firmware updates are typically needed unless specified by ABB for critical performance or security enhancements.
