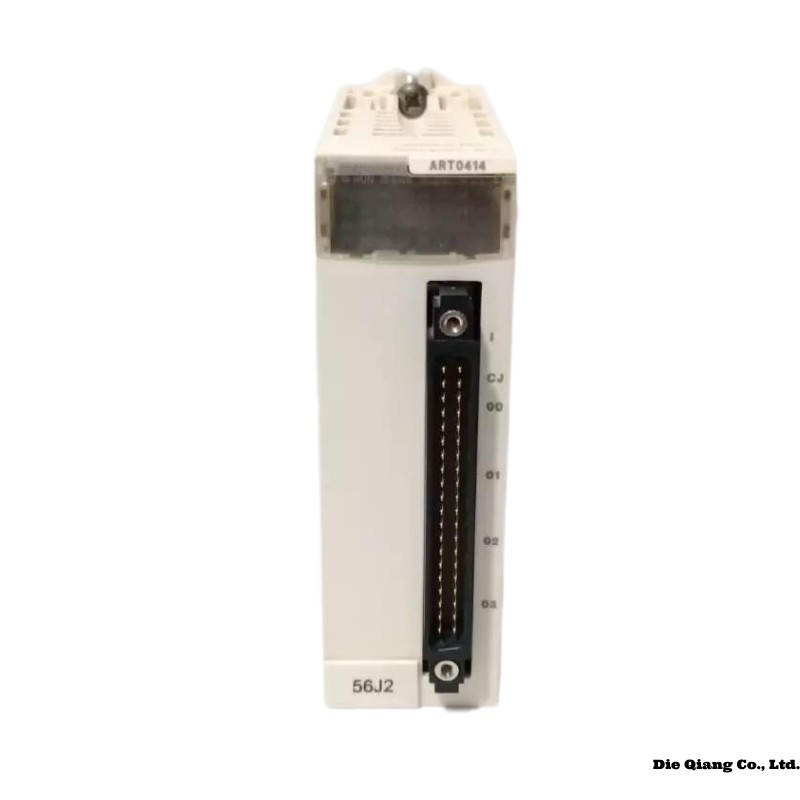

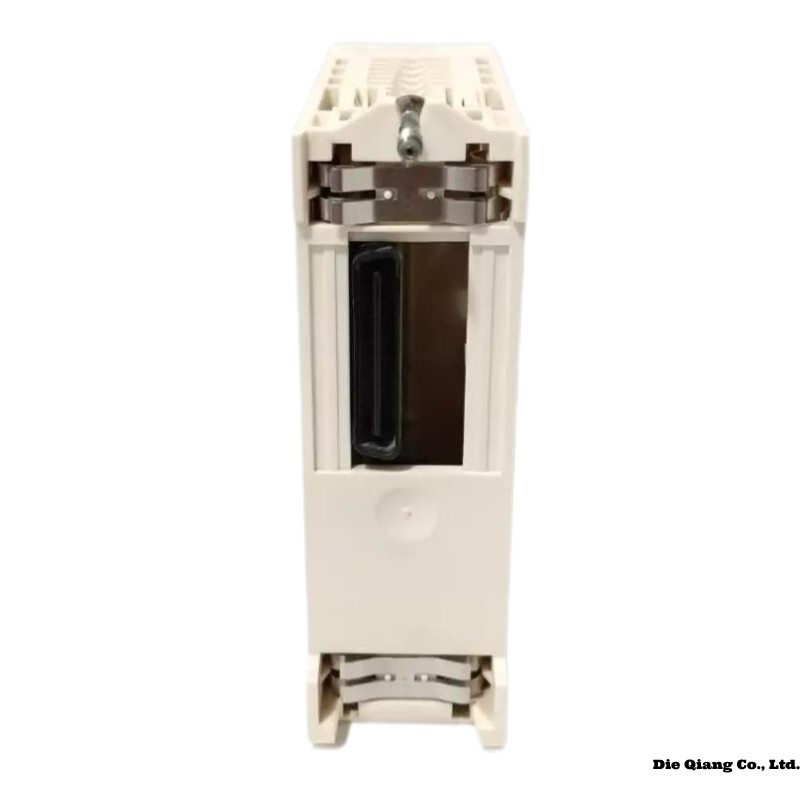

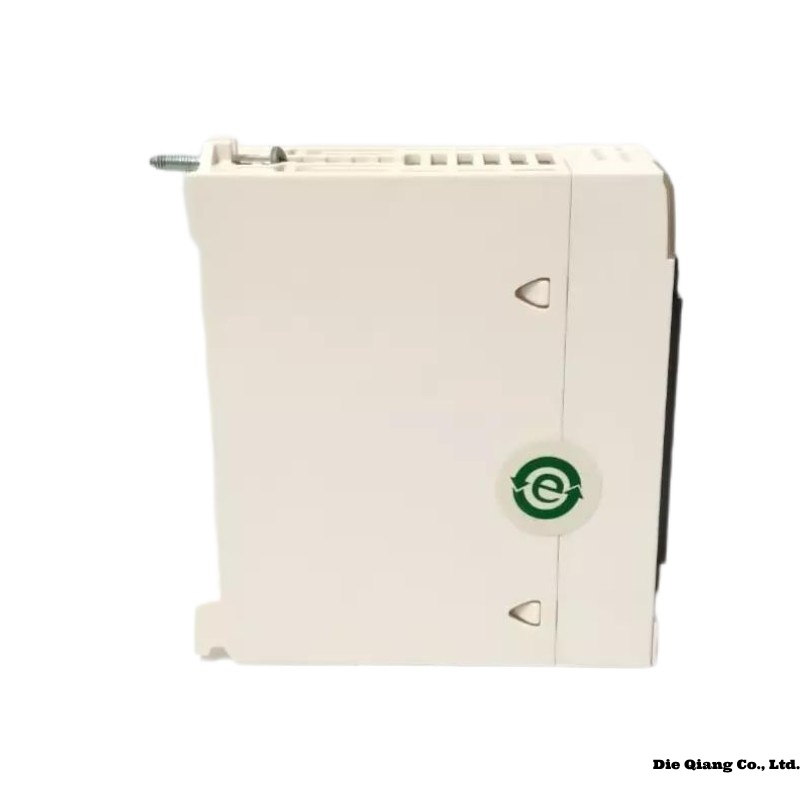

Product Introduction – Schneider Electric BMXART0414

The Schneider Electric BMXART0414 is an analog input/output module from the Modicon M340 programmable logic controller (PLC) range. Engineered to meet the demands of modern industrial automation systems, the BMXART0414 features a robust design capable of withstanding harsh environments while providing accurate analog signal processing. It includes 4 analog inputs and 2 analog outputs, supporting both voltage and current signals. Its modular structure allows seamless integration into M340 racks, facilitating efficient data acquisition and process control.

Designed for industries such as water treatment, manufacturing, energy, and transportation, the BMXART0414 ensures reliable and stable performance with precise signal measurement and output control, making it a trusted solution for critical control system architectures.

Product Advantages

• High Accuracy: Delivers precise analog signal processing, ensuring accurate data measurement and output control.

• Wide Signal Compatibility: Supports various analog signal types, including voltage (0–10 V) and current (0–20 mA, 4–20 mA), making it versatile for many applications.

• Seamless Integration: Easily integrates into Modicon M340 PLC architecture, allowing for modular and scalable automation solutions.

• Strong Electromagnetic Compatibility (EMC): Designed with industrial-grade EMC protection, suitable for environments with high electrical noise.

• Diagnostics and LED Indication: Equipped with front panel LEDs for real-time status diagnostics, improving system maintainability.

• Compact and Rugged Design: Saves space in control cabinets while withstanding industrial conditions.

Technical Specifications

Product Applications

• Water and Wastewater Treatment Plants: Accurate signal measurement for flow, level, and chemical dosing systems.

• Industrial Process Automation: Analog control of temperature, pressure, and speed in manufacturing and chemical processes.

• Energy and Utilities: Monitoring and control of analog energy parameters in substations and power distribution systems.

• HVAC Control Systems: Real-time analog feedback from temperature and pressure sensors.

• Food & Beverage Processing: Ensures precision in dosing, mixing, and temperature control systems.

• Building Automation: Integration with centralized BMS for environmental control.

Compatible Models

The Schneider BMXART0414 module works seamlessly with the following Modicon M340 family components:

• BMXP342020 – Modicon M340 CPU

• BMXCPS2010 – Power supply module

• BMXPRA0100 – M340 rack with 4 slots

• BMXDDI3202K – 32-point discrete input module

• BMXDRA1605 – 16-point relay output module

• BMXXBP0400 – Backplane with 4 module slots

Installation Instructions

1. Power Off the System: Ensure that the PLC system is fully powered off before installation.

2. Mount the Module: Attach the BMXART0414 module to the DIN rail in the designated slot of the backplane.

3. Secure the Module: Use the module’s side clips to lock it firmly into place to prevent vibration or loosening.

4. Wiring Connections: Connect the analog input and output wires to the terminal block using shielded cables for noise immunity.

5. Check Grounding: Ensure proper grounding of analog signal shields to reduce electromagnetic interference.

6. Power On and Configure: Power up the PLC, then configure the module parameters in the Unity Pro or EcoStruxure Control Expert software.

7. Diagnostics: Monitor the onboard LED indicators to verify correct operation and communication.

Related Models (Same Series / Analog Modules)

8 Popular Schneider Models (Across Categories)

Frequently Asked Questions (FAQ)

Q1: What types of signals can the BMXART0414 handle?
A1: The module supports standard analog signals including 0–10 V, ±10 V, 0–20 mA, and 4–20 mA, making it suitable for most industrial analog applications.

Q2: Can I use this module in high-vibration environments?
A2: Yes, the BMXART0414 is industrially rated and designed to operate reliably under moderate mechanical stress and vibrations when properly mounted on a DIN rail.

Q3: What software is used for programming and configuration?
A3: The module is configured using EcoStruxure Control Expert (formerly Unity Pro), which allows users to assign parameters, scaling, and diagnostics.

Q4: Is the BMXART0414 compatible with legacy Modicon PLCs?
A4: It is designed specifically for the Modicon M340 series and is not backward-compatible with older Modicon Quantum or Premium series without special gateways.

Q5: How is the module powered?
A5: The module is powered through the M340 backplane and does not require a separate power supply. It draws power from the main power supply module (e.g., BMXCPS2010).

Q6: Does the module provide channel-to-channel isolation?
A6: No, while the module offers isolation between the I/O circuitry and the backplane, it does not provide isolation between individual channels.
