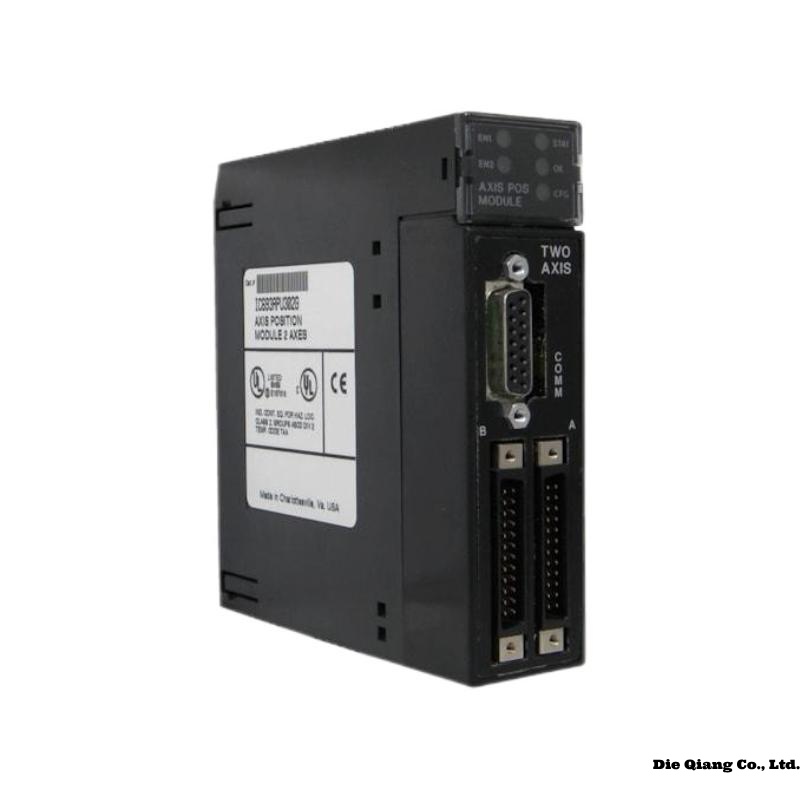

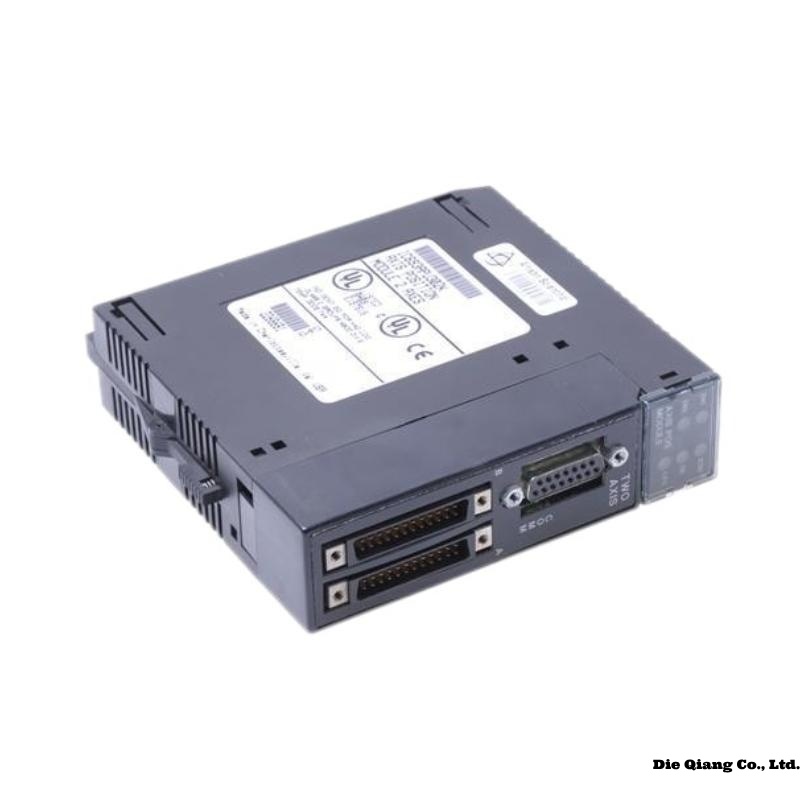

GE IC693APU302 High-Speed Counter Module

Product Introduction

The GE IC693APU302 is a High-Speed Counter (HSC) module designed for use within the GE Series 90-30 PLC system. It provides advanced counting capabilities for applications that require rapid, accurate, and real-time processing of pulse or encoder inputs. With its ability to operate independently of the CPU scan time, the IC693APU302 enables fast control response to high-speed input signals, which is vital in many industrial applications.

This module supports up to two independent counting channels, each capable of handling a variety of input signal formats, including quadrature, up/down, and count pulse. It can operate in standalone mode or interact with the CPU to influence broader automation processes. Designed with durability, flexibility, and performance in mind, the IC693APU302 is a core component for automation systems requiring precise and high-speed counting.

Product Advantages

• High-Speed Counting Capability: Supports count rates up to 1 MHz, enabling rapid signal processing.

• Dual Independent Channels: Allows simultaneous operation of two counting processes, improving operational efficiency.

• Flexible Input Configuration: Accepts various input types such as quadrature, pulse/direction, and up/down counts.

• Autonomous Operation: Operates independently of the PLC CPU scan cycle, reducing latency and improving response time.

• Rugged Design: Built to withstand harsh industrial environments with high noise immunity and stable operation.

• Seamless Integration: Easily integrates into the GE Series 90-30 PLC chassis with minimal configuration.

• Real-Time Data Access: Provides up-to-the-millisecond status of counters and position tracking.

• User-Configurable Parameters: Supports configuration through software for flexible deployment.

Technical Specifications

Applications

• Material Handling Systems: Accurate tracking of position and speed using encoder signals.

• Packaging Machinery: High-speed detection of product flow and synchronization.

• Conveyor Belt Control: Count products or objects on a production line.

• Position Control Systems: Monitor encoder feedback in automated positioning tasks.

• Industrial Robotics: Integrate real-time pulse counting for motion feedback.

• Textile and Printing Machinery: Count rotations or pulses to maintain precise fabric or print positioning.

Compatible Models

The IC693APU302 is typically used with the following components from the GE Series 90-30 system:

• IC693CHS391 – 10-slot baseplate

• IC693CPU374 – CPU module with Ethernet

• IC693PWR321 – Power supply module

• IC693MDL645 – 16-point discrete output module

• IC693ALG220 – 4-channel analog input module

• IC693MDL340 – 8-point isolated relay output module

Installation Instructions

1. Power Down the PLC System before inserting or removing modules to avoid damage.

2. Insert the IC693APU302 Module into an available I/O slot on the Series 90-30 baseplate.

3. Ensure the module is fully seated and secured using the provided latching mechanism.

4. Connect Input Devices to the terminal block according to the channel input configuration (e.g., encoder or pulse generator).

5. Configure the Module Parameters using GE’s configuration software (e.g., Proficy Machine Edition). Define count mode, initial count value, and preset.

6. Download Configuration to the CPU and test module operation using a test pulse generator or field signals.

7. Monitor status via diagnostic LEDs on the module front panel.

8. Perform final commissioning and validate counting results under real process conditions.

6 Related or Similar Models

8 Popular GE PLC Models with Specifications

Frequently Asked Questions (FAQ)

Q1: What types of signals can the IC693APU302 count?

A1: The IC693APU302 can process pulse/direction, up/down, and quadrature signals. It is ideal for use with encoders and pulse-generating sensors.

Q2: Can I use both channels simultaneously?

A2: Yes, the module supports two independent channels that can operate simultaneously, each with its own configuration and counting logic.

Q3: How is this module configured?

A3: Configuration is performed through the GE Proficy Machine Edition software. You can define count modes, preset values, edge detection, and output behavior.

Q4: Is the module affected by CPU scan time?

A4: No, the module operates asynchronously from the CPU scan, ensuring high-speed performance even if the CPU scan is slow.

Q5: Does the IC693APU302 support encoder feedback?

A5: Yes, the module is capable of interpreting encoder feedback using quadrature inputs for accurate position or velocity tracking.

Q6: What diagnostic features are available?

A6: The module includes front-panel LEDs for each channel, indicating counting activity and errors, which assist in troubleshooting and diagnostics.
