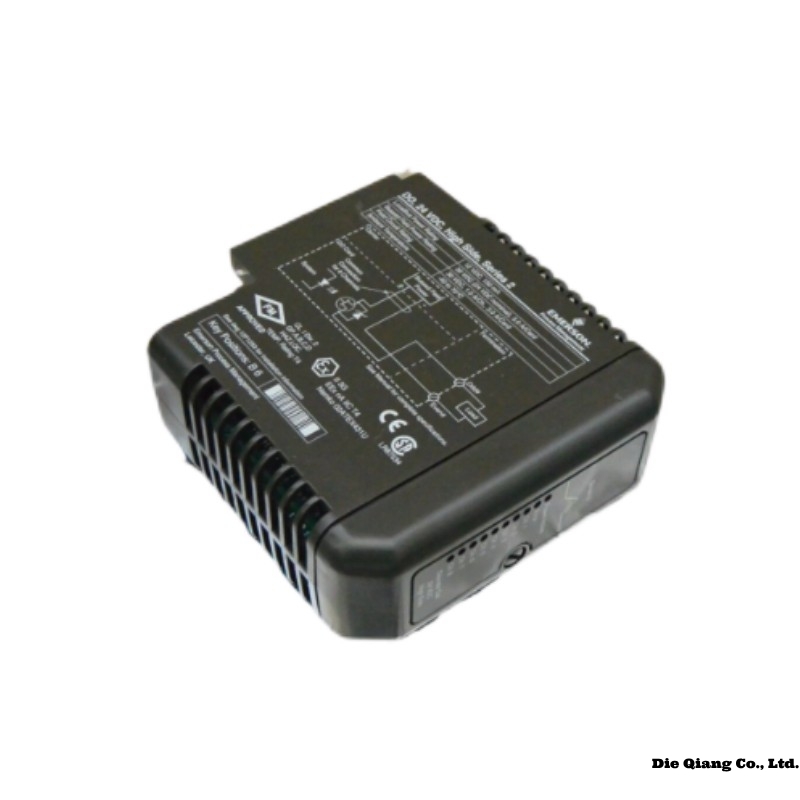

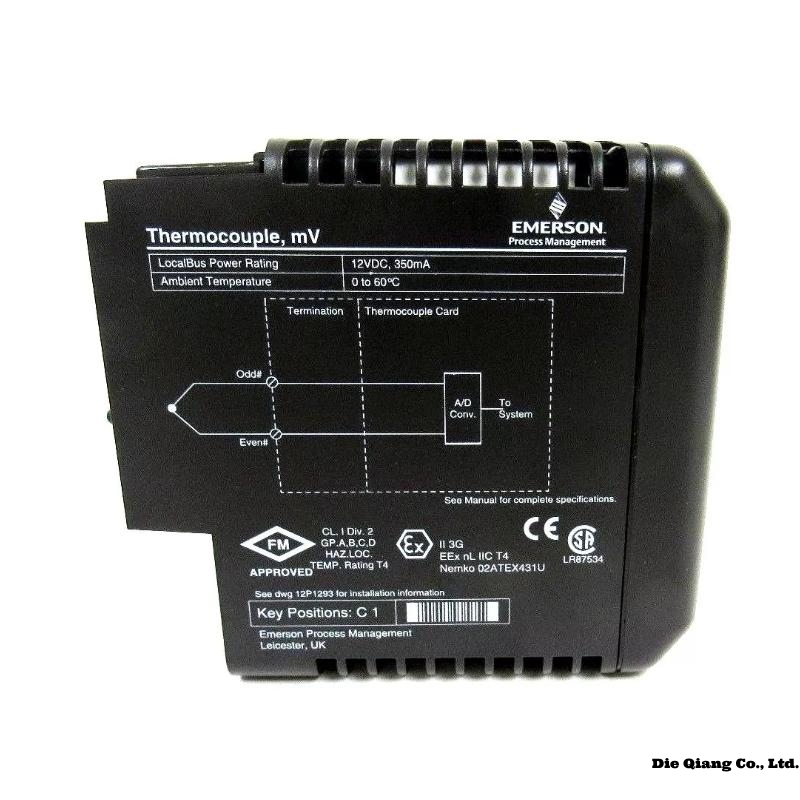

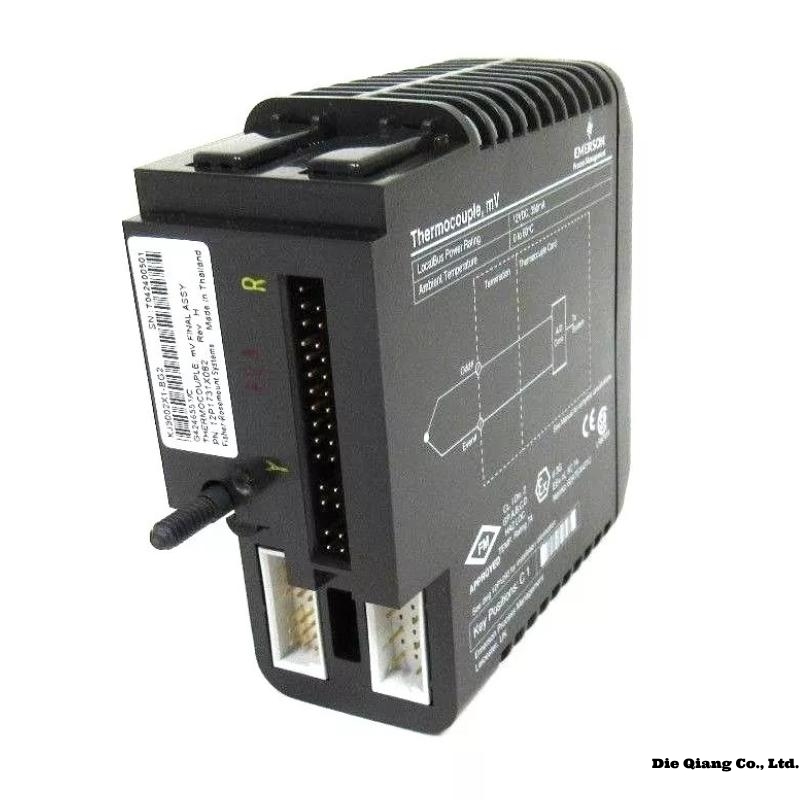

Emerson VE4003S5B1 KJ3002X1-BG2 12P1731X082 Product Overview

The Emerson VE4003S5B1 KJ3002X1-BG2 12P1731X082 is a high-performance industrial sensor designed for precise measurement and control applications. It is part of Emerson’s extensive portfolio of automation and process control solutions, known for reliability, durability, and advanced technology.

This product is widely used in industries such as oil & gas, chemical processing, water treatment, and manufacturing, where accurate sensing and robust performance are critical.

Product Advantages

1. High Accuracy – Delivers precise measurements, ensuring optimal process control.

2. Robust Construction – Built to withstand harsh industrial environments, including extreme temperatures and pressures.

3. Long Lifespan – Engineered for durability, reducing maintenance and replacement costs.

4. Easy Integration – Compatible with various Emerson systems and third-party devices.

5. Advanced Diagnostics – Provides real-time monitoring and fault detection for improved operational efficiency.

6. Wide Operating Range – Suitable for diverse industrial applications.

Technical Specifications

Applications

• Oil & Gas – Pressure monitoring in pipelines and refineries.

• Chemical Processing – Accurate fluid measurement in reactors.

• Water Treatment – Level and flow control in purification systems.

• Power Generation – Boiler and turbine pressure sensing.

• Manufacturing – Process automation in production lines.

Compatible Models for Integration

• Emerson KJ3002X1-CA1 – Complementary pressure transmitter.

• Emerson VE4005S5B1 – Higher-range variant for extreme pressures.

• Emerson 12P1731X083 – Alternate model with enhanced diagnostics.

• Emerson KJ3002X1-DG2 – Explosion-proof version for hazardous areas.

Installation Instructions

1. Mounting – Secure the sensor using appropriate brackets in a vibration-free location.

2. Wiring – Connect the 4-20 mA output to the control system following the wiring diagram.

3. Calibration – Perform zero and span calibration using a certified pressure source.

4. Testing – Verify signal output and communication (HART/Modbus) before full operation.

5. Maintenance – Regularly inspect for debris or corrosion and clean as needed.

Recommended Related Models (Same Series)

Top 8 Popular Emerson Models

FAQ (Q&A)

Q1: What is the operating temperature range of the VE4003S5B1?
A1: It operates between -40°C to +85°C.

Q2: Can this sensor be used in hazardous areas?
A2: The standard model is not explosion-proof, but the KJ3002X1-DG2 variant is rated for hazardous locations.

Q3: What communication protocols are supported?
A3: HART and Modbus RTU.

Q4: How often should calibration be performed?
A4: Annual calibration is recommended for critical applications.

Q5: Is the enclosure resistant to water and dust?
A5: Yes, it has an IP67 rating.

Q6: Can the output signal be customized?
A6: Yes, alternative outputs like 0-10V or RS485 can be configured.
