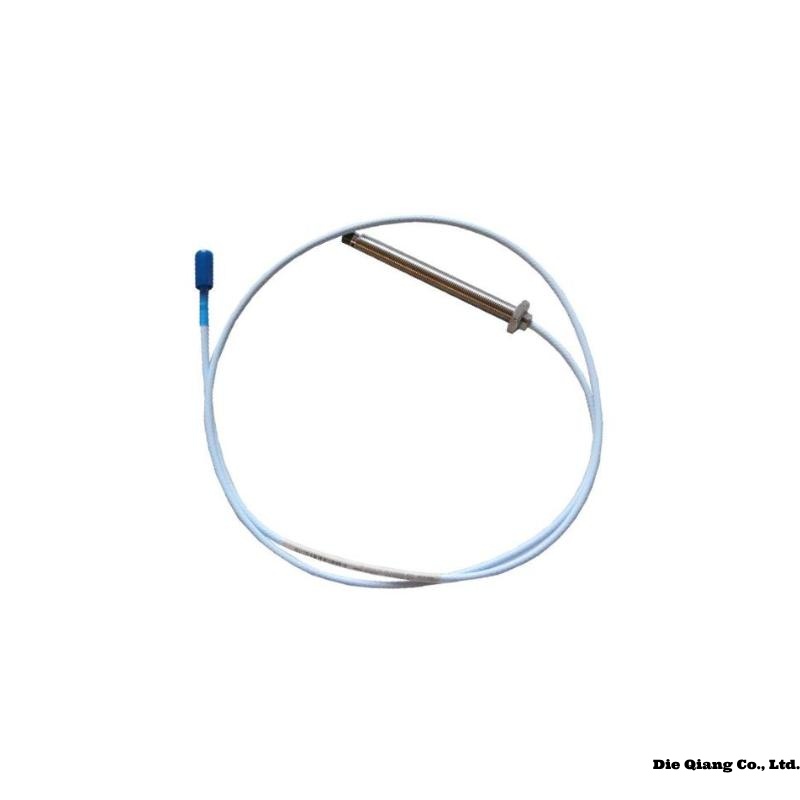

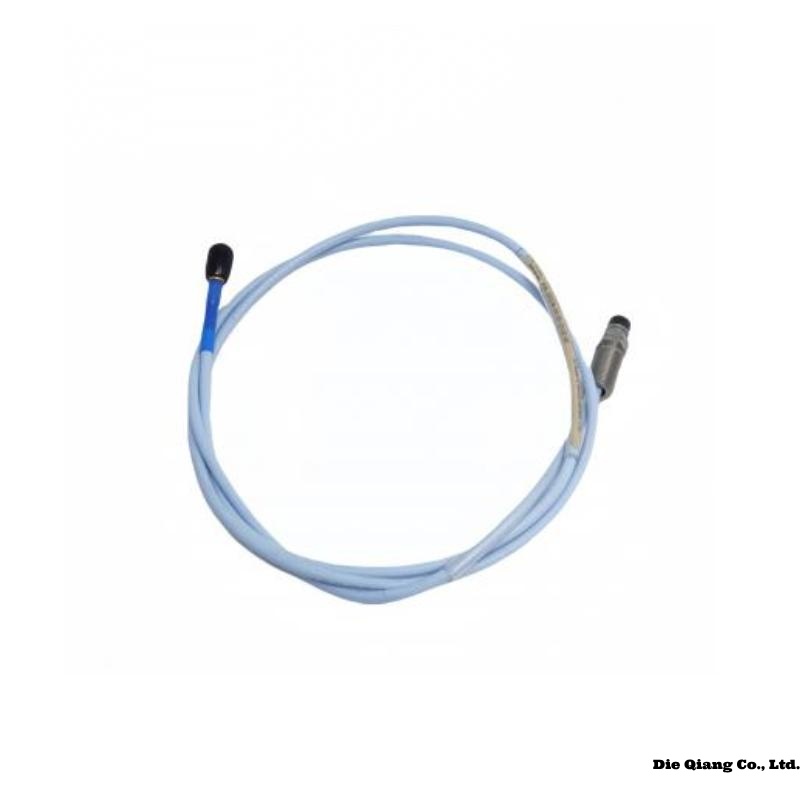

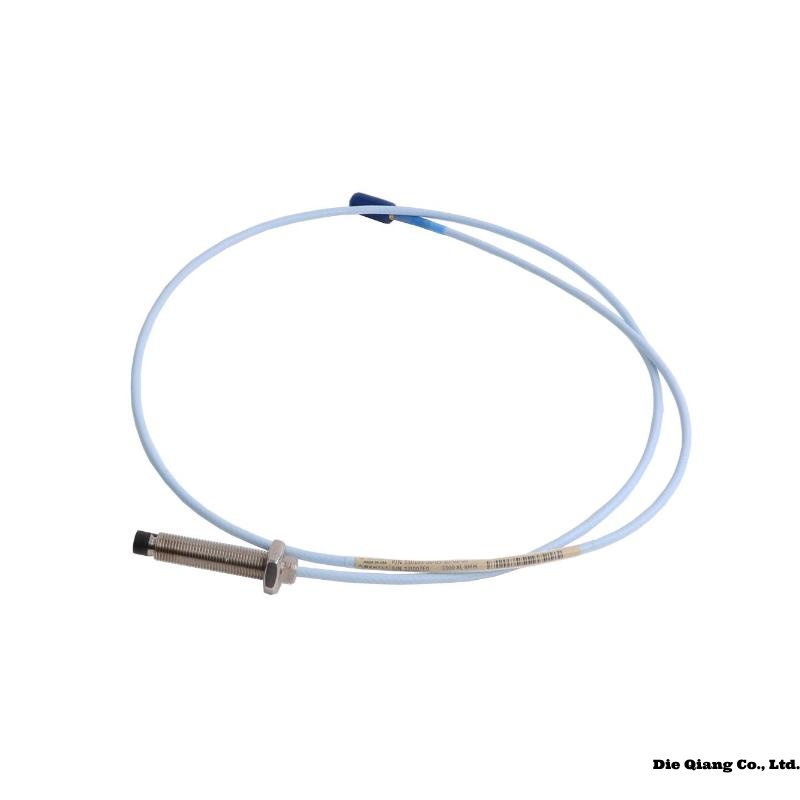

Bently Nevada 330103-00-04-05-02-00 Product Overview

The Bently Nevada 330103-00-04-05-02-00 is a high-performance vibration monitoring transducer designed for industrial applications. It is part of the Bently Nevada 3300 series, which is widely recognized for its reliability and precision in machinery protection and condition monitoring.

This transducer is commonly used in rotating machinery such as turbines, compressors, pumps, and motors to detect vibration and provide real-time data for predictive maintenance. Its robust construction and advanced sensing technology ensure accurate measurements even in harsh industrial environments.

Product Advantages

1. High Accuracy: Provides precise vibration measurements for early fault detection.

2. Durability: Built to withstand extreme temperatures, humidity, and mechanical stress.

3. Easy Integration: Compatible with Bently Nevada monitoring systems for seamless data collection.

4. Low Maintenance: Designed for long-term reliability with minimal servicing requirements.

5. Wide Application Range: Suitable for various industrial machinery and processes.

Technical Specifications

Applications

The Bently Nevada 330103-00-04-05-02-00 is ideal for:

• Gas and steam turbines

• Centrifugal and reciprocating compressors

• Pumps and fans

• Electric motors and generators

• Gearboxes and rolling mills

Compatible Models

This transducer is often used with the following Bently Nevada systems:

• 3300 XL 8mm Proximity Transducer System

• 3500/42M Vibration Monitor

• 3701/65 Transmitter

Installation Instructions

1. Mounting: Secure the transducer to the machinery using the provided brackets or mounting holes. Ensure proper alignment for accurate readings.

2. Wiring: Connect the transducer to the monitoring system using shielded cables to reduce noise interference.

3. Calibration: Perform initial calibration using the manufacturer’s guidelines to ensure optimal performance.

4. Testing: Verify the output signal before full operation.

Recommended Similar or Related Models

Top 8 Popular Bently Nevada Models

Frequently Asked Questions (FAQ)

Q1: What is the operating temperature range of the 330103-00-04-05-02-00?
A1: The transducer operates within -40°C to +85°C.

Q2: Can this transducer be used in explosive environments?
A2: No, this model is not explosion-proof. For hazardous areas, consider the 330106-00-04-05-02-00.

Q3: What is the standard cable length?
A3: The standard cable length is 3 meters, but custom lengths are available.

Q4: How often should the transducer be calibrated?
A4: Calibration should be performed annually or as per operational conditions.

Q5: Is the output signal compatible with PLC systems?
A5: Yes, the 4-20 mA output can be integrated with most PLCs.

Q6: What is the expected lifespan of this transducer?
A6: With proper maintenance, the transducer can last 5-10 years depending on environmental conditions.
